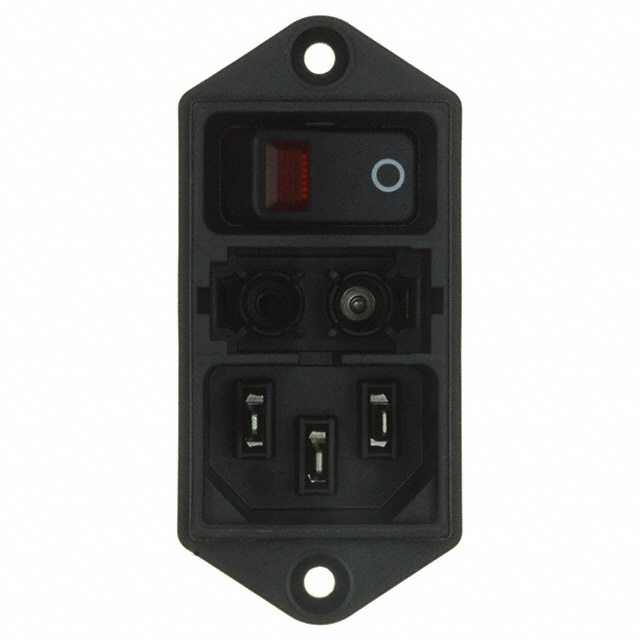

DD11.0113.1111

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DD11.0113.1111

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Cover
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Switch Features	Illuminated, Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

AC Power Entry Modules Red illumination QC 10A No Drawer

Part	Connector Type	Features	Accomodates a Fuse	Ingress Protection	Filter Type	Switch Features	Voltage Rating - Appliance Inlet	Mounting Type	Approval Agency	Termination	Termination	Material Flammability Rating	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Connector Style
SCHURTER Inc. DD11.0113.1111	Receptacle Male Blades - Module	Cover		IP40	Unfiltered - Commercial	Illuminated Switch On-Off	250 VAC	Flange Panel Mount	cULus ENEC	0.189 " 4.8 mm	Quick Connect	UL94 V-0	10 A	Drawer Sold Separate	IEC 320-C14
SCHURTER Inc. DD11.0113.1110	Receptacle Male Blades - Module			IP40	Unfiltered - Commercial	Illuminated Switch On-Off	250 VAC	Flange Panel Mount	cULus ENEC	0.189 " 4.8 mm	Quick Connect	UL94 V-0	10 A	Drawer Sold Separate	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Power Entry Modules Red illumination QC 10A No Drawer
