K257-1012-00
ActiveJacob GmbH

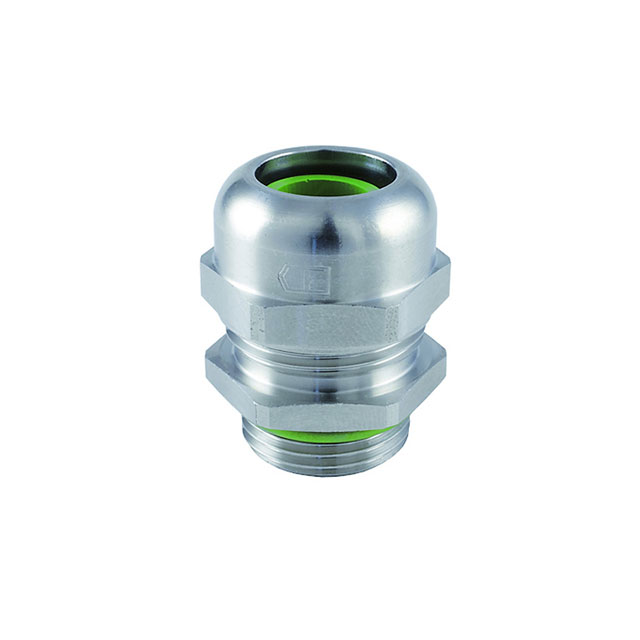

CABLE GLAND 3-8MM M12 S STEEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K257-1012-00
ActiveJacob GmbH
CABLE GLAND 3-8MM M12 S STEEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K257-1012-00 |
|---|---|
| Color | Silver |
| Includes | O-Ring, Seal |
| Ingress Protection | IP69, IP67, IP66 |
| Material | Stainless Steel |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 8 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.315 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 3 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.118 in |
| Thread Length | 0.256 in |
| Thread Length | 6.5 mm |
| Thread Size | M12x1.5 |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 30.25 | |
| 10 | $ 23.35 | |||
| 25 | $ 21.15 | |||
| 50 | $ 19.67 | |||
| 100 | $ 18.33 | |||
| 250 | $ 16.75 | |||
| 500 | $ 15.68 | |||
Description
General part information
K257-1012 Series
Cable Gland Stainless Steel M12x1.5 Silver
