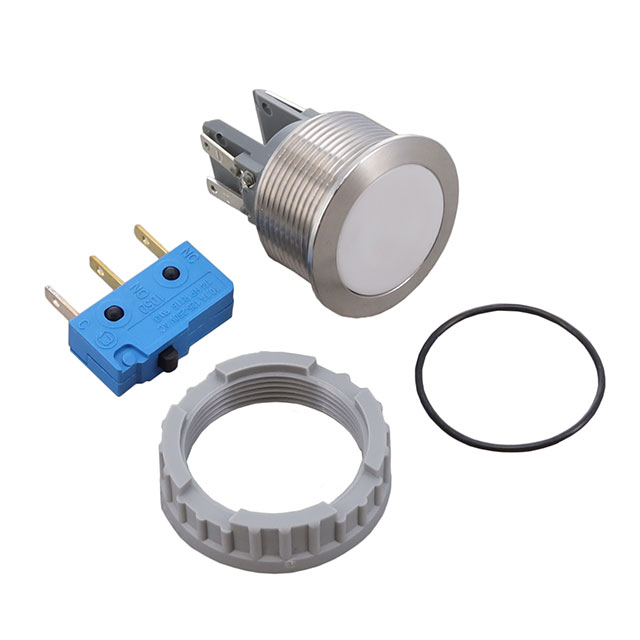

MSM22-NXCS10A-SNCCWTNF-AIRGB024-Q0000-S

Obsolete

SCHURTER Inc.

MSM SERIES 22MM METAL LINE SWITC

Deep-Dive with AI

Search across all available documentation for this part.

MSM22-NXCS10A-SNCCWTNF-AIRGB024-Q0000-S

Obsolete

SCHURTER Inc.

MSM SERIES 22MM METAL LINE SWITC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSM22-NXCS10A-SNCCWTNF-AIRGB024-Q0000-S

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	10 A
Electrical Life	50000 Cycles
Features	Ceramic Actuator
Illumination Type, Color	Red, LED, Blue, Green
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V

MSM22-NX Series

Part	Illumination Voltage (Nominal)	Voltage Rating - AC	Switch Function	Circuit	Actuator Marking	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Type	Mounting Type	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Mechanical Life	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Features
SCHURTER Inc. MSM22-NX0010A-SNCSNCNF-RI0BL024-Q0000-S	24 V	250 V	On-Mom	SPDT	No Marking	IP40	-25 °C	85 °C	Blue LED	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	10 A	50000 Cycles
SCHURTER Inc. MSM22-NXDP05A-SNCSNCNF-RI0BL024-Q0000-S	24 V	125 V	On-Mom	DPDT	No Marking	IP40	-25 °C	85 °C	Blue LED	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	5 A	200000 Cycles
SCHURTER Inc. MSM22-NX00A10-SNCSNCNF-RI0GN024-Q0000-S	24 V		On-Mom	SPDT	No Marking	IP40	-25 °C	85 °C	Green LED	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	100 mA	200000 Cycles	30 V
SCHURTER Inc. MSM22-NX0005A-SNCSNCNF-RI0GN024-Q0000-S	24 V	125 V	On-Mom	SPDT	No Marking	IP40	-25 °C	85 °C	Green LED	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	5 A	200000 Cycles
SCHURTER Inc. MSM22-NXDP05A-SNCSNCNF-RI0GN024-Q0000-S	24 V	125 V	On-Mom	DPDT	No Marking	IP40	-25 °C	85 °C	Green LED	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	5 A	200000 Cycles
SCHURTER Inc. MSM22-NX0010A-SNCSNCNF-RI0RD024-Q0000-S	24 V	250 V	On-Mom	SPDT	No Marking	IP40	-25 °C	85 °C	LED Red	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	10 A	50000 Cycles
SCHURTER Inc. MSM22-NX00A10-SNCSNCNF-RIRGB024-Q0000-S	24 V		On-Mom	SPDT	No Marking	IP40	-25 °C	85 °C	Blue Green LED Red	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	100 mA	200000 Cycles	30 V
SCHURTER Inc. MSM22-NXCS10A-SNCCWTNF-AIRGB024-Q0000-S	24 V	250 V	On-Mom	SPDT	No Marking	IP40	-25 °C	85 °C	Blue Green LED Red	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Clear	1500000 Cycles	10 A	50000 Cycles		Ceramic Actuator
SCHURTER Inc. MSM22-NX00A10-SNCSNCNF-RI0BL024-Q0000-S	24 V		On-Mom	SPDT	No Marking	IP40	-25 °C	85 °C	Blue LED	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	100 mA	200000 Cycles	30 V
SCHURTER Inc. MSM22-NX0005A-SNCSNCNF-RI0RD024-Q0000-S	24 V	125 V	On-Mom	SPDT	No Marking	IP40	-25 °C	85 °C	LED Red	Anti-Vandal Illuminated	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Flush Round	22.1 mm	Silver	1500000 Cycles	5 A	200000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.38

Description

General part information

MSM22-NX Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
