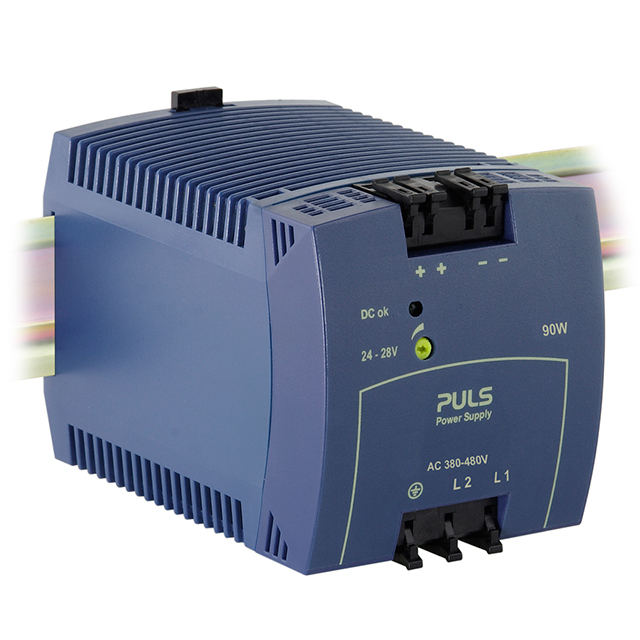

ML90.200
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 24V 90W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ML90.200
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 24V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ML90.200 |
|---|---|
| AC Voltage - Input [Max] | 480 VAC |
| AC Voltage - Input [Min] | 380 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | IEC, UL, NEC, EAC, ABS, DNV GL |
| Current - Output (Max) [Max] | 3.75 A |
| Efficiency | 89.9 % |
| Features | Adjustable Output, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 90 W |
| Size / Dimension [x] | 4.06 " |
| Size / Dimension [x] | 103 mm |
| Size / Dimension [y] | 2.87 " |
| Size / Dimension [y] | 73 mm |
| Size / Dimension [z] | 75 mm |
| Size / Dimension [z] | 2.95 " |
| Standard Number | 61010.201, 60950.1, 508 |
| Standard Number | Class 2 |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 291.60 | |
Description
General part information
ML90 Series
AC/DC DIN RAIL SUPPLY 24V 90W
