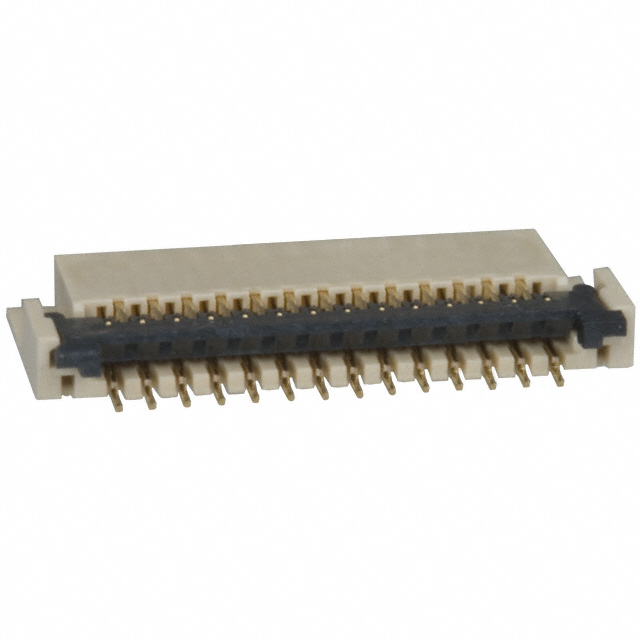

FH23-27S-0.3SHAW(05)

Obsolete

Hirose Electric USA, Inc.

CONN FPC BOTTOM 27POS 0.3MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FH23 Series Datasheet

FH23-27S-0.3SHAW(05)

Obsolete

Hirose Electric USA, Inc.

CONN FPC BOTTOM 27POS 0.3MM R/A

Deep-Dive with AI

DocumentsDatasheet FH23 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH23-27S-0.3SHAW(05)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	300 mA
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.049 in
Height Above Board	1.25 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	27
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	30 VDC

FH23 Series

Part	Housing Material	Locking Feature	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector/Contact Type	Termination	Cable End Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Material	Mating Cycles	Features	Mounting Type	Housing Color	Actuator Material	Actuator Color	Flat Flex Type	FFC, FCB Thickness	Material Flammability Rating	Contact Finish	Number of Positions
Hirose Electric USA, Inc. FH23-51S-0.3SHW(06)	Liquid Crystal Polymer (LCP)	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP)	Black	FPC	0.2 mm	UL94 V-0	Gold	51
Hirose Electric USA, Inc. FH23-45S-0.3SHAW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold	45
Hirose Electric USA, Inc. FH23-33S-0.3SHAW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold	33
Hirose Electric USA, Inc. FH23-21S-0.3SHAW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold	21
Hirose Electric USA, Inc. FH23-25S-0.3SHAW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold
Hirose Electric USA, Inc. FH23-71S-0.3SHW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold	71
Hirose Electric USA, Inc. FH23-17S-0.3SHAW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold
Hirose Electric USA, Inc. FH23-21S-0.3SHW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold	21
Hirose Electric USA, Inc. FH23-27S-0.3SHAW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold	27
Hirose Electric USA, Inc. FH23-39S-0.3SHAW(05)	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	300 mA	85 °C	-55 °C	30 VDC	Contacts Bottom	Solder	Tapered	0.012 in	0.3 mm	0.049 in	1.25 mm	Phosphor Bronze	10	Low Insertion Force (LIF)	Surface Mount Right Angle	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Black	FPC	0.2 mm	UL94 V-0	Gold	39

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FH23 Series

27 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
