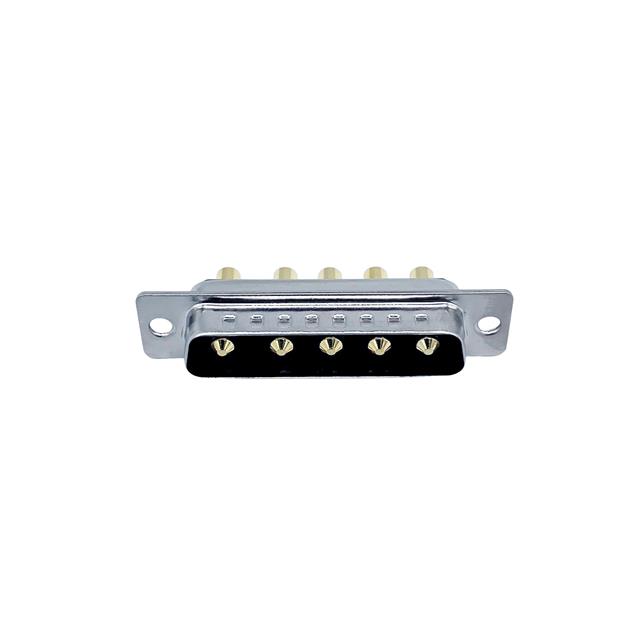

681M5W5103L141
ActiveMH Connectors
CONN D-SUB PLUG 5P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
681M5W5103L141
ActiveMH Connectors
CONN D-SUB PLUG 5P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 681M5W5103L141 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 40 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 5 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5W5 |
| Shell Size, Connector Layout | 3 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
681M5W5 Series
| Part | Current Rating (Amps) | Connector Style | Flange Feature | Color | Contact Finish Thickness | Shell Material, Finish | Connector Type | Contact Finish | Contact Material | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Dielectric Material | Number of Positions [custom] | Features | Number of Rows | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 40 A | Combo D-Sub | 4-40 Board Side | Black | Flash | Nickel Plated Steel | Male Pins Plug | Gold | Copper Alloy | UL94 V-0 | -55 °C | 125 °C | Panel Mount Through Hole | Power | 5W5 | 3 | Polybutylene Terephthalate (PBT) | 5 | Board Lock Grounding Indents | 1 | Solder | |
MH Connectors | 40 A | Combo D-Sub | 4-40 Board Side | Black | Flash | Nickel Plated Steel | Male Pins Plug | Gold | Copper Alloy | UL94 V-0 | -55 °C | 125 °C | Panel Mount Through Hole | Power | 5W5 | 3 | Polybutylene Terephthalate (PBT) | 5 | Board Lock Grounding Indents | 1 | Solder | |
MH Connectors | 40 A | Combo D-Sub | 4-40 Board Side | Black | Flash | Nickel Plated Steel | Male Pins Plug | Gold | Copper Alloy | UL94 V-0 | -55 °C | 125 °C | Panel Mount Through Hole | Power | 5W5 | 3 | Polybutylene Terephthalate (PBT) | 5 | Board Lock Grounding Indents | 1 | Solder | 250 VDC |
MH Connectors | 40 A | Combo D-Sub | 4-40 Board Side | Black | Flash | Nickel Plated Steel | Receptacle Female Sockets | Gold | Copper Alloy | UL94 V-0 | -55 °C | 125 °C | Panel Mount Through Hole | Power | 5W5 | 3 | Polybutylene Terephthalate (PBT) | 5 | 1 | Solder | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.77 | |
| 10 | $ 12.90 | |||
| 25 | $ 11.67 | |||
| 40 | $ 11.09 | |||
| 80 | $ 10.31 | |||
| 230 | $ 9.26 | |||
| 440 | $ 8.69 | |||
| 945 | $ 8.08 | |||
Description
General part information
681M5W5 Series
5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
