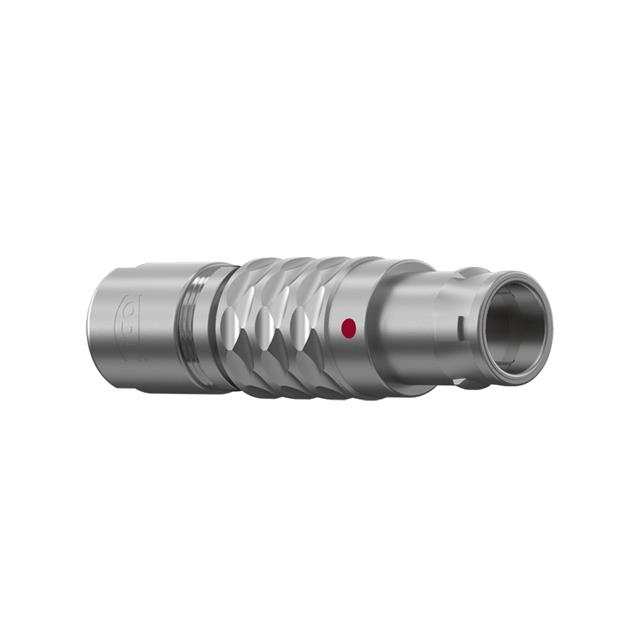

A10L0C-P02MJG0-4200

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A10L0C-P02MJG0-4200

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A10L0C-P02MJG0-4200

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Unshielded
Voltage Rating	500 V

A10L0C-P Series

Part	Shielding	Connector Type	Contact Finish - Mating	Features	Shell Finish	Mounting Type	Color	Current Rating (Amps)	Insert Material	Primary Material	Contact Material	Ingress Protection	Shell Material	Backshell Material, Plating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Applications	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
ODU A10L0C-P02MJG0-4200	Unshielded	Male Pins Plug	Gold	Backshell	Chrome over Nickel	Free Hanging (In-Line)	Silver	7.5 A	Polyetheretherketone (PEEK)	Metal	Brass	IP50	Brass	Brass Chrome over Nickel	500 V	-40 °C	120 °C	Push-Pull	2	Industrial Medical Military Testing Equipment & Measurement
ODU A10L0C-P09MCC0-5600	Unshielded	Male Pins Plug	Gold	Backshell	Chrome over Nickel	Free Hanging (In-Line)	Silver	4 A	Polyetheretherketone (PEEK)	Metal	Brass	IP50	Brass	Brass Chrome over Nickel	200 V	-40 °C	120 °C	Push-Pull	9	Industrial Medical Military Testing Equipment & Measurement	0.197 in	5 mm	0.22 in	5.6 mm
ODU A10L0C-P10MCC9-4200	Unshielded	Male Pins Plug	Gold	Backshell	Chrome over Nickel	Free Hanging (In-Line)	Silver	4 A	Polyetheretherketone (PEEK)	Metal	Brass	IP50	Brass	Brass Chrome over Nickel	200 V	-40 °C	120 °C	Push-Pull	10	Industrial Medical Military Testing Equipment & Measurement
ODU A10L0C-P05MFG0-4200	Unshielded	Male Pins Plug	Gold	Backshell	Chrome over Nickel	Free Hanging (In-Line)	Silver	7.5 A	Polyetheretherketone (PEEK)	Metal	Brass	IP50	Brass	Brass Chrome over Nickel	200 V	-40 °C	120 °C	Push-Pull		Industrial Medical Military Testing Equipment & Measurement

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.74
LCSC	Piece	1	$ 98.84
		200	$ 39.44
		500	$ 38.12
		1000	$ 37.47

Description

General part information

A10L0C-P Series

2 Position Circular Connector Plug, Male Pins Solder Cup
