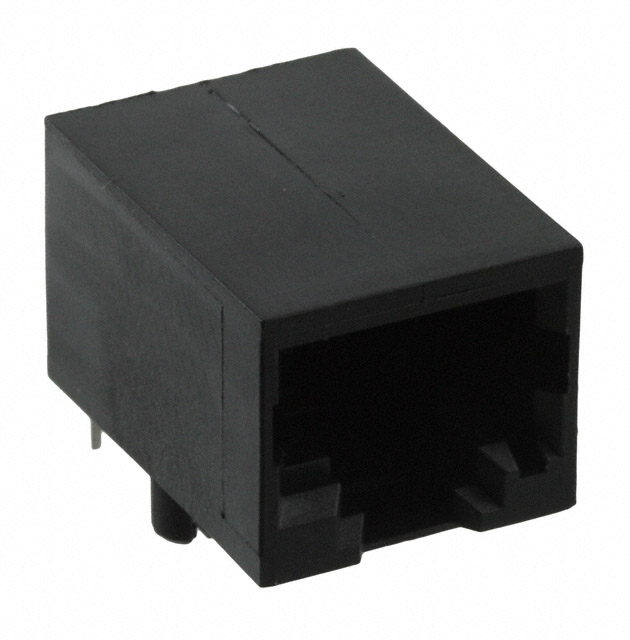

SS-641010-NF-RMK4

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

SS-641010-NF-RMK4

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 CONNECTOR

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-641010-NF-RMK4

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Lock, Keyed
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts [custom]	10
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

SS-641010 Series

Part	Contact Finish	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Shielding	Number of Rows	Tab Direction	Contact Material	Orientation	Number of Ports	LED Color	Termination	Housing Material	Features	Ratings
BEL MAGNETIC SOLUTIONS SS-641010S-A-NF-A111	Gold	10	10	85 °C	-40 °C	Through Hole	0.76 Ám	30 Áin	Jack	Shielded	1	Down	Copper Alloy	90 °	1	Does Not Contain LED	Solder	Thermoplastic
BEL MAGNETIC SOLUTIONS SS-641010-NF-RMK4	Gold	10	10	85 °C	-40 °C	Through Hole	0.76 Ám	30 Áin	Jack	Shielded	1	Down	Copper Alloy	90 °	1	Does Not Contain LED	Solder	Thermoplastic	Board Lock Keyed
BEL MAGNETIC SOLUTIONS SS-641010S-A-NF-K1	Gold	10	10	85 °C	-40 °C	Through Hole	0.76 Ám	30 Áin	Jack	Shielded	1	Down	Copper Alloy	90 °	1	Does Not Contain LED	Solder	Thermoplastic	Board Lock Keyed
BEL MAGNETIC SOLUTIONS SS-641010-NF-A115	Gold	10	10	85 °C	-40 °C	Through Hole	1.27 µm	50 µin	Jack	Shielded	1	Down	Copper Alloy	90 °	1	Does Not Contain LED	Solder	Thermoplastic		Cat5
BEL MAGNETIC SOLUTIONS SS-641010-A-NF-A111	Gold	10	10	85 °C	-40 °C	Through Hole	0.76 Ám	30 Áin	Jack	Unshielded	1	Down	Copper Alloy	90 °	1	Does Not Contain LED	Solder	Thermoplastic
BEL MAGNETIC SOLUTIONS SS-641010-NF	Gold	10	10	85 °C	-40 °C	Through Hole	0.76 Ám	30 Áin	Jack	Unshielded	1	Down	Copper Alloy	90 °	1	Does Not Contain LED	Solder	Thermoplastic
BEL MAGNETIC SOLUTIONS SS-641010S-A-NF-K1-RED	Gold	10	10	85 °C	-40 °C	Through Hole			Jack	Shielded	1	Down	Copper Alloy	90 °	1	Does Not Contain LED	Solder	Thermoplastic Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.67
		10	$ 2.04
		25	$ 1.83
		40	$ 1.74
		80	$ 1.61
		230	$ 1.43
		440	$ 1.34
		945	$ 1.24
		2400	$ 1.13
Newark	Each	1	$ 2.73
		10	$ 2.51
		25	$ 2.39
		50	$ 2.29
		100	$ 2.20
		250	$ 2.04
		500	$ 1.91
		1000	$ 1.69

Description

General part information

SS-641010 Series

Jack Modular Connector 10p10c (RJ50) 90° Angle (Right) Shielded
