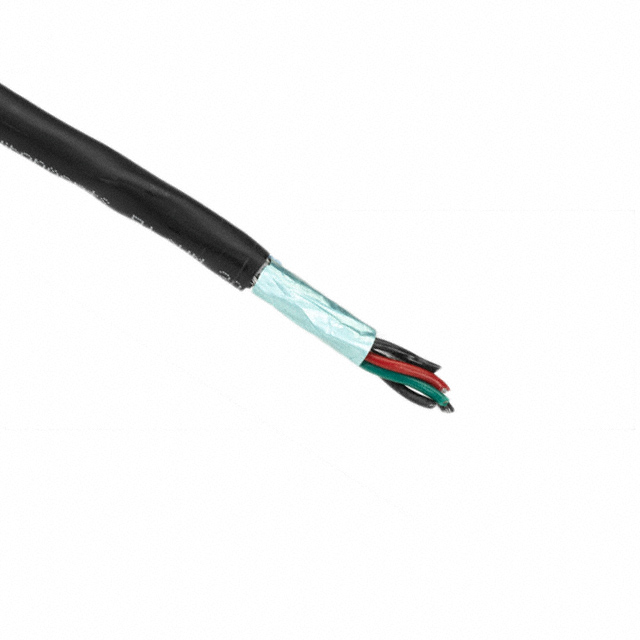

25484 YL199

Active

ALPHA WIRE

MULTI-PAIR 8CON 22AWG 1000=1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 8CON 22AWG 1000=1000'

Technical Specifications

Parameters and characteristics for this part

Specification	25484 YL199

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.271 in
Jacket (Insulation) Diameter [diameter]	6.88 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Yellow
Number of Conductors	8
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Conductor Insulation	Jacket (Insulation) Material	Number of Conductors	Shield Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Conductor Material	Cable Type	Wire Gauge	Voltage	Shield Type	Ratings	Length	Length
ALPHA WIRE 25484 YL199	-30 ░C	90 °C	100 %	Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	8	Aluminum	Biological Compatibility Drain Wire Rip Cord	0.271 in	6.88 mm	7	30 AWG	Yellow	Copper Tinned	Multi-Pair	22 AWG	300 V	Foil	ISO 10993 UL Style 20668
ALPHA WIRE 25484 SL199	-30 ░C	90 °C	100 %	Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	8	Aluminum	Biological Compatibility Drain Wire Rip Cord	0.271 in	6.88 mm	7	30 AWG	Slate	Copper Tinned	Multi-Pair	22 AWG	300 V	Foil	ISO 10993 UL Style 20668	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.34

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Yellow 22 AWG Foil
