5-1617350-7

Active

TE Connectivity Aerospace, Defense and Marine

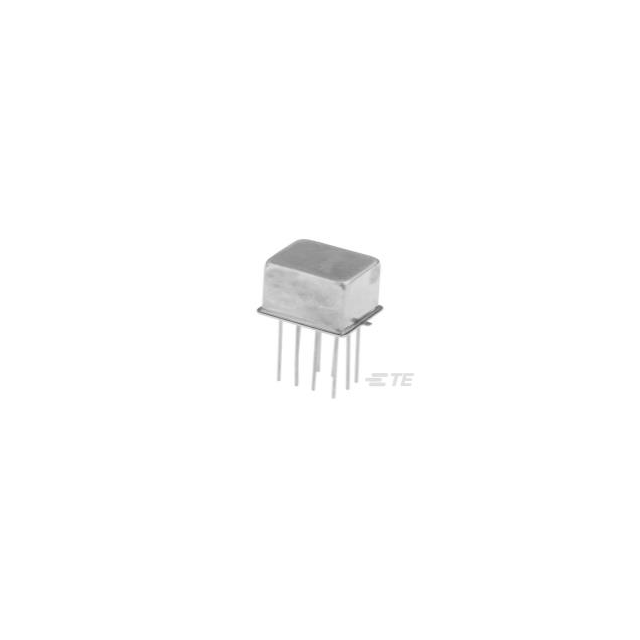

RELAY GENERAL PURPOSE DPDT 1A 5V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GENERAL PURPOSE DPDT 1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	5-1617350-7

Coil Current	50 mA
Coil Resistance	100 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	1 A
Features	Diode
Mounting Type	Through Hole
Must Operate Voltage	2.9 VDC
Must Release Voltage	0.23 VDC
Operate Time	4 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Relay Type	General Purpose
Release Time	7.5 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	28 VDC, 115 VAC
Termination Style	PC Pin

Part	Coil Type	Contact Rating (Current)	Features	Contact Form	Contact Material	Termination Style	Coil Current	Switching Voltage	Must Release Voltage	Seal Rating	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Release Time	Operate Time	Mounting Type	Relay Type	Coil Voltage	Load - Max Switching	Grade	Qualification
TE Connectivity Aerospace, Defense and Marine 5-1617350-7	Non Latching	1 A	Diode	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	PC Pin	50 mA	28 VDC 115 VAC	0.23 VDC	Sealed - Hermetically	2.9 VDC	125 °C	-65 ░C	100 Ohms	7.5 ms	4 ms	Through Hole	General Purpose	5 VDC
TE Connectivity Aerospace, Defense and Marine 5-1617350-3	Non Latching	1 A		DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	PC Pin	8.3 mA	28 VDC 115 VAC	1.4 VDC	Sealed - Hermetically	14 VDC	125 °C	-65 ░C	3.2 kOhms	2 ms	4 ms	Through Hole	General Purpose	26.5 VDC	28 W 115 VA
TE Connectivity Aerospace, Defense and Marine JMGST-18PW	Non Latching	1 A	Diode	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	PC Pin	13.8 mA	28 VDC 115 VAC	0.97 VDC	Sealed - Hermetically	10.6 VDC	125 °C	-65 ░C	1.6 kOhms	7.5 ms	4 ms	Through Hole	General Purpose	18 VDC	28 W 115 VA	Military	MIL-R-28776/7
TE Connectivity Aerospace, Defense and Marine JMGST-5LW	Non Latching	1 A	Diode	DPDT (2 Form C)	Gold (Au) Silver Palladium (AgPd)	PC Pin	56 mA	28 VDC 115 VAC	0.23 VDC	Sealed - Hermetically	2.9 VDC	125 °C	-65 ░C	100 Ohms	7.5 ms	4 ms	Through Hole	General Purpose	5 VDC	28 W 115 VA	Military	MIL-R-28776/7
