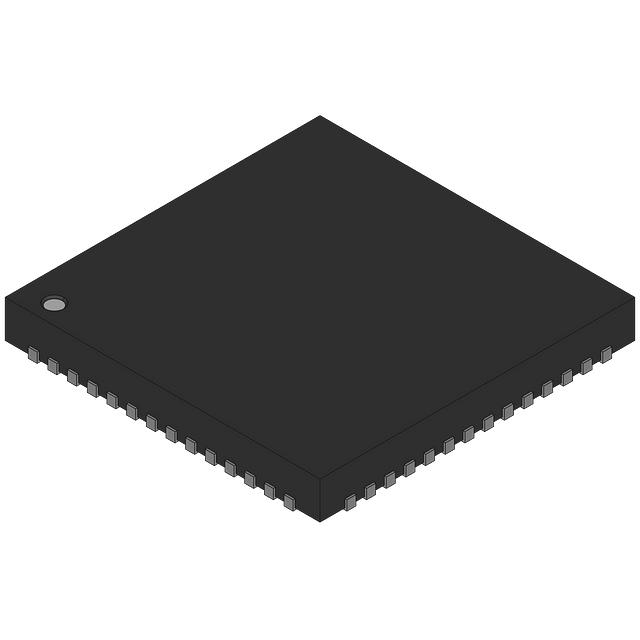

UPD78F8040K8(R)-9B4-AX
ObsoleteRenesas Electronics Corporation
IC MCU 16BIT 32KB FLASH 56QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UPD78F8040K8(R)-9B4-AX
ObsoleteRenesas Electronics Corporation
IC MCU 16BIT 32KB FLASH 56QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UPD78F8040K8(R)-9B4-AX |
|---|---|
| Connectivity | LINbus, UART/USART, CSI, I2C |
| Core Processor | 78K/0 |
| Core Size | 16-Bit |
| Data Converters [custom] | 10 b |
| Data Converters [custom] | 6 |
| Mounting Type | Surface Mount |
| Number of I/O | 23 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 56-WFQFN Exposed Pad |
| Peripherals | LVD, WDT, PWM, POR |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 4K x 8 |
| Speed | 20 MHz |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 16 | $ 19.32 | |
Description
General part information
UPD78F8040 Series
78K/0 78K/UPD78F80xx Microcontroller IC 16-Bit 20MHz 32KB (32K x 8) FLASH
