PN1L-M4AFB002E0Y

Active

IDEC

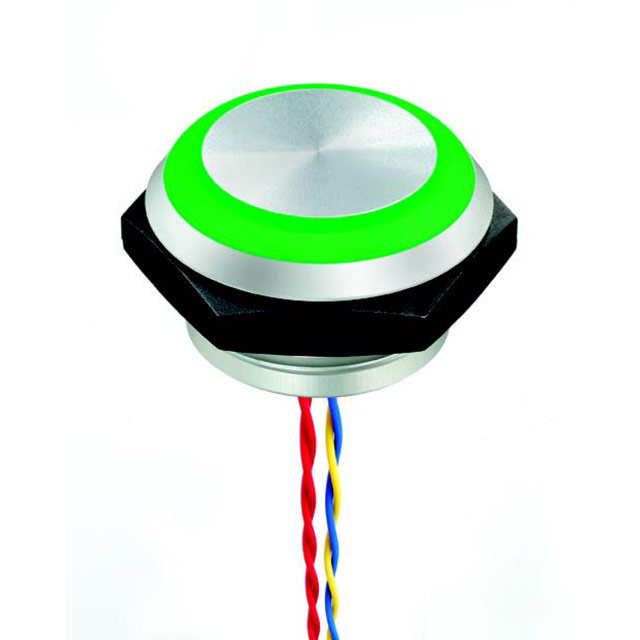

30MM PIEZO RING 24VDC YELLOW ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PN1L-M4AFB002E0Y

Active

IDEC

30MM PIEZO RING 24VDC YELLOW ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PN1L-M4AFB002E0Y

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Electrical Life	50000000 Cycles
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP68, IP69K
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30.5 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Piezo
Voltage Rating - AC	24 V
Voltage Rating - DC	24 V

PN1L Series

Part	Ingress Protection	Mounting Type	Actuator Marking	Voltage Rating - AC	Termination Style	Switch Function	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Circuit	Type	Illumination Type, Color	Color - Actuator/Cap	Illumination Voltage (Nominal)	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
IDEC PN1L-M2AFB002E0B	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	Blue LED	Silver	24 V	24 V	30.5 mm
IDEC PN1L-M2AFB002E0S	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	LED Red	Silver	24 V	24 V	30.5 mm
IDEC PN1L-M2AFB002D0W	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	LED White	Silver	12 VDC	24 V	30.5 mm
IDEC PN1L-M2AFB002D0B	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	Blue LED	Silver	12 VDC	24 V	30.5 mm
IDEC PN1L-M4AFB002D0S	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	LED Red	Silver	12 VDC	24 V	30.5 mm
IDEC PN1L-M4AFB002E2A	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	Green/Red LED	Silver	24 V	24 V	30.5 mm
IDEC PN1L-M4AFB002E0Y	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	LED Yellow	Silver	24 V	24 V	30.5 mm
IDEC PN1L-M4AFB002D0Y	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	LED Yellow	Silver	12 VDC	24 V	30.5 mm
IDEC PN1L-M2AFB002E0Y	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	LED Yellow	Silver	24 V	24 V	30.5 mm
IDEC PN1L-M4AFB002D0W	IP68 IP69K	Panel Mount Front	No Marking	24 V	Wire Leads	Off-Mom	Button Flush Round	-40 °C	75 ░C	50000000 Cycles	SPST-NO	Piezo	LED White	Silver	12 VDC	24 V	30.5 mm
