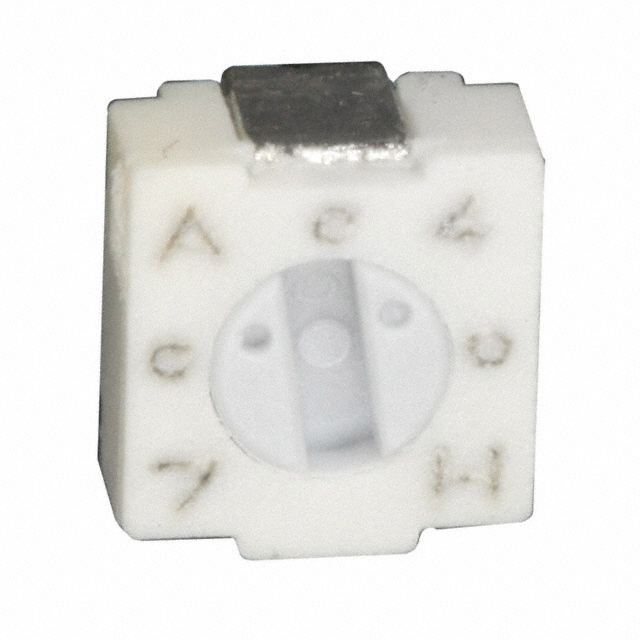

3313X-1-502E
ActiveBourns Inc.
TRIMMER 5K OHM 0.125W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3313X-1-502E
ActiveBourns Inc.
TRIMMER 5K OHM 0.125W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3313X-1-502E |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 0.125 W |
| Power (Watts) | 0.125 W |
| Resistance | 5 kOhms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 0.138 in |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.19 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.61 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.21 | |||
| Digi-Reel® | 1 | $ 1.45 | ||
| 10 | $ 1.28 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.06 | |||
| 250 | $ 1.01 | |||
| 500 | $ 0.84 | |||
| Tape & Reel (TR) | 1000 | $ 0.79 | ||
| 2000 | $ 0.78 | |||
Description
General part information
3313X Series
5 kOhms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
