123-0901-801

Active

Cinch Connectivity Solutions Johnson

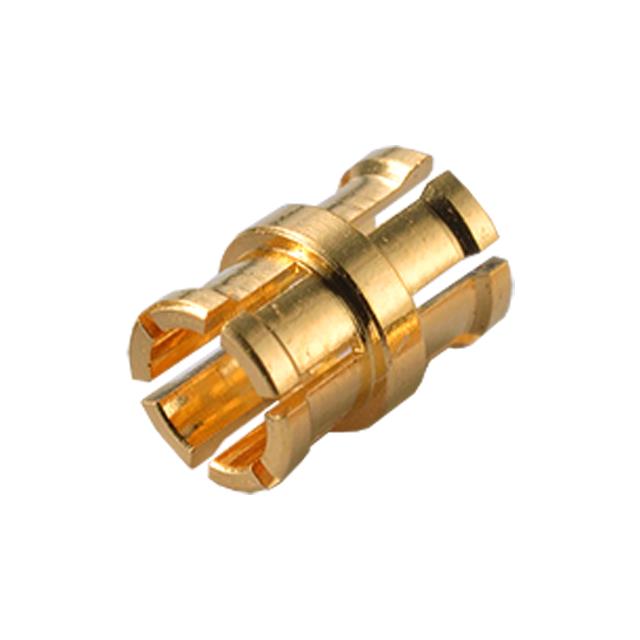

SMP3, FEMALE-FEMALE BULLET ADAPT

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMP3, FEMALE-FEMALE BULLET ADAPT

Technical Specifications

Parameters and characteristics for this part

Specification	123-0901-801

Adapter Series	SMP3 to SMP3
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SMP3 Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMP3 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	67 GHz
Impedance	50 Ohms
Mating Cycles	500, 100
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Gender	Convert From (Adapter End)	Frequency - Max [Max]	Conversion Type	Body Finish	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Impedance	Center Contact Plating	Fastening Type	Convert To (Adapter End)	Adapter Series	Mating Cycles	Mounting Type	Body Material	Style	Dielectric Material
Cinch Connectivity Solutions Johnson 123-0901-801	Female to Female	SMP3 Jack Female Socket	67 GHz	Same Series	Gold	Jack to Jack	-65 ░C	165 °C	Beryllium Copper	50 Ohms	Gold	Snap-On	Female Socket SMP3 Jack	SMP3 to SMP3	100 500	Free Hanging (In-Line)	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMP3 Jack, Female Socket To SMP3 Jack, Female Socket 50 Ohms
