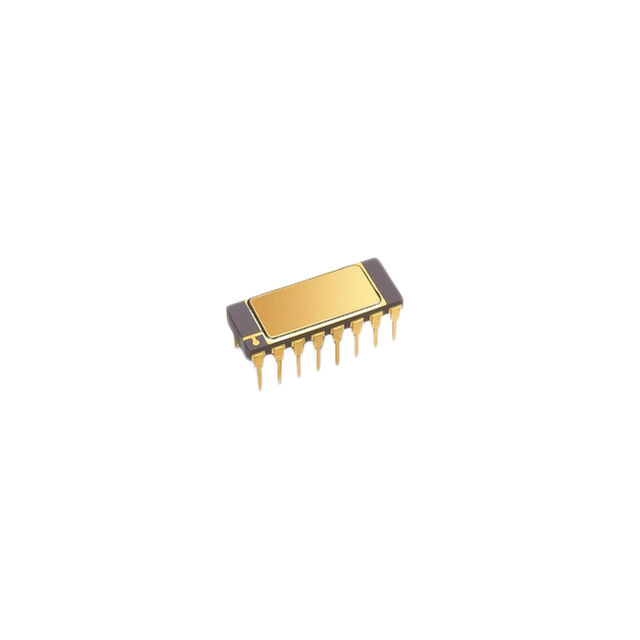

ACPL-5160-200

Active

Broadcom Limited

OPTOISO 1.5KV 1CH GATE DVR 16DIP

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOISO 1.5KV 1CH GATE DVR 16DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ACPL-5160-200

Common Mode Transient Immunity (Min) [Min]	9 kV/µs
Current - Output High, Low [custom]	2 A
Current - Output High, Low [custom]	2 A
Current - Peak Output	2.5 A
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	16-DIP
Package / Case	7.9 mm
Package / Case	0.311 in
Propagation Delay tpLH / tpHL (Max) [custom]	500 ns
Propagation Delay tpLH / tpHL (Max) [custom]	500 ns
Pulse Width Distortion (Max) [Max]	300 ns
Rise / Fall Time (Typ) [custom]	100 ns
Rise / Fall Time (Typ) [custom]	100 ns
Supplier Device Package	16-DIP
Technology	Optical Coupling
Voltage - Isolation	1.5 kV
Voltage - Output Supply [Max]	30 V
Voltage - Output Supply [Min]	15 V

Part	Mounting Type	Common Mode Transient Immunity (Min) [Min]	Technology	Number of Channels	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Peak Output	Supplier Device Package	Voltage - Isolation	Pulse Width Distortion (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case
Broadcom Limited ACPL-5160-300	Surface Mount	9 kV/µs	Optical Coupling	1	-55 °C	125 °C	16-SMD Gull Wing	2.5 A	16-SMD Gull Wing	1.5 kV	300 ns	100 ns	100 ns	15 V	30 V	500 ns	500 ns	2 A	2 A
Broadcom Limited ACPL-5160-200	Through Hole	9 kV/µs	Optical Coupling	1	-55 °C	125 °C	16-DIP	2.5 A	16-DIP	1.5 kV	300 ns	100 ns	100 ns	15 V	30 V	500 ns	500 ns	2 A	2 A	7.9 mm	0.311 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.5A Gate Driver Optical Coupling 1500VDC 1 Channel 16-DIP
