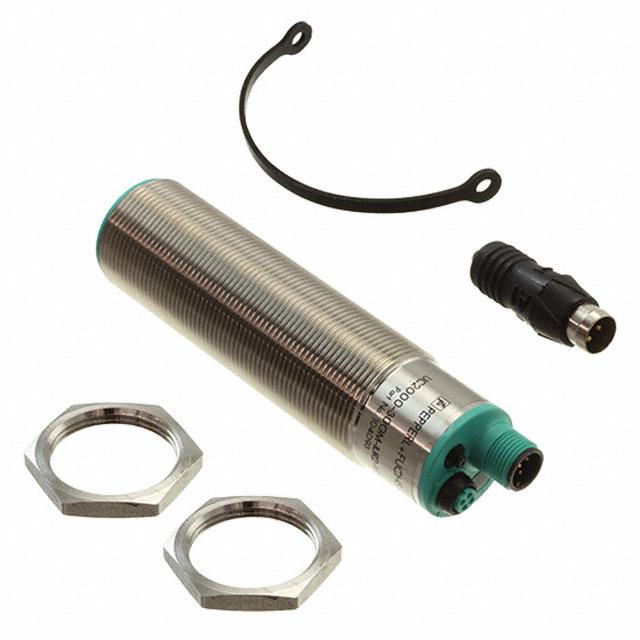

UC2000-30GM-IUR2-V15

Active

PEPPERL+FUCHS

ULTRASONIC PROXIMITY SENSOR, UC2000 SERIES, M30, 2 M, ANALOG OUTPUT, 180 KHZ, 10 TO 30 VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

UC2000-30GM-IUR2-V15

Active

PEPPERL+FUCHS

ULTRASONIC PROXIMITY SENSOR, UC2000 SERIES, M30, 2 M, ANALOG OUTPUT, 180 KHZ, 10 TO 30 VDC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UC2000-30GM-IUR2-V15

Indicator [custom]	LED
Ingress Protection	IP65
Material - Body	Stainless Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	Analog Current and Voltage
Package / Case	Cylinder, Threaded - M30
Sensing Distance [Max]	78.74 "
Sensing Distance [Max]	2000 mm
Sensing Distance [Min]	3.15 "
Sensing Distance [Min]	80 mm
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

UC2000 Series

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Material - Body	Indicator [custom]	Shielding	Sensor Type	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Package / Case
PEPPERL+FUCHS UC2000-30GM-IUR2-V15	Analog Current and Voltage	70 °C	-25 °C	IP65	Stainless Steel	LED	Unshielded	Ultrasonic	78.74 "	3.15 "	80 mm	2000 mm	30 VDC	10 VDC	Connector	Cylinder Threaded - M30

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 696.69
		5	$ 587.82
		10	$ 546.83
Newark	Each	1	$ 731.73
		5	$ 680.50

Description

General part information

UC2000 Series

The UC2000-30GM-IUR2-V15 is an Ultrasonic Sensor with single head system. Stainless steel housing. It uses sound waves for measurement, making them ideal for consideration in application that are difficult to solve with photoelectric devices. Short-circuit, over-load and reverse polarity protection. They are available with adjustable single or dual switch points or with analog outputs. They are used for web detection or level control.
