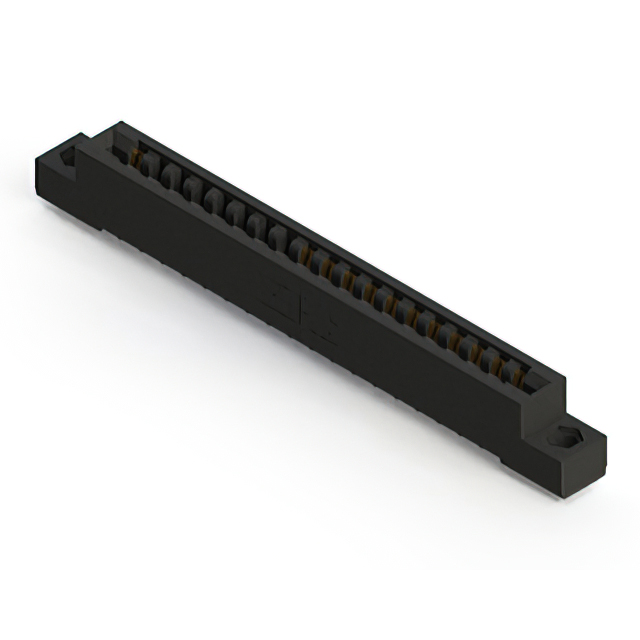

857-019-505-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 19POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-019-505-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 19POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-019-505-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
857-019 Series
...
| Part | Number of Positions | Read Out | Number of Rows | Flange Feature | Flange Feature | Flange Feature | Mounting Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Gender | Pitch [x] | Pitch [x] | Color | Contact Finish | Card Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 19 | Single | 1 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Gold | Non Specified - Single Edge | ||
EDAC Inc. | 38 | Dual | 2 | Through Hole Right Angle | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Gold | Non Specified - Dual Edge | |||||
EDAC Inc. | 38 | Dual | 2 | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Gold | Non Specified - Dual Edge | ||||
EDAC Inc. | 19 | Single | 1 | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Gold | Non Specified - Single Edge | |||||
EDAC Inc. | 19 | Single | 1 | Flush Mount Top Opening Unthreaded | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | 10 Áin | 0.25 Ám | Copper Alloy | Solder Eyelet(s) | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Gold | Non Specified - Single Edge | 3.96 mm | 0.156 in | ||
EDAC Inc. | 19 | Single | 1 | Floating Bobbin Flush Mount | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | 10 Áin | 0.25 Ám | Copper Alloy | Wire Wrap | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Gold | Non Specified - Single Edge | 2.95 mm | 0.116 in | ||
EDAC Inc. | 19 | Single | 1 | Flush Mount Top Opening Unthreaded | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | Copper Alloy | Solder | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Tin | Non Specified - Single Edge | 3.25 mm | 0.128 " | ||||
EDAC Inc. | 19 | Single | 1 | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | Copper Alloy | Solder | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Tin | Non Specified - Single Edge | ||||||
EDAC Inc. | 19 | Single | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | Copper Alloy | Solder Eyelet(s) | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Tin | Non Specified - Single Edge | ||||||
EDAC Inc. | 19 | Single | 1 | Floating Bobbin Flush Mount | Through Hole | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 1 | 10 Áin | 0.25 Ám | Copper Alloy | Solder | 125 °C | -40 °C | 19 | Female | 0.156 in | 3.96 mm | Black | Gold | Non Specified - Single Edge | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
