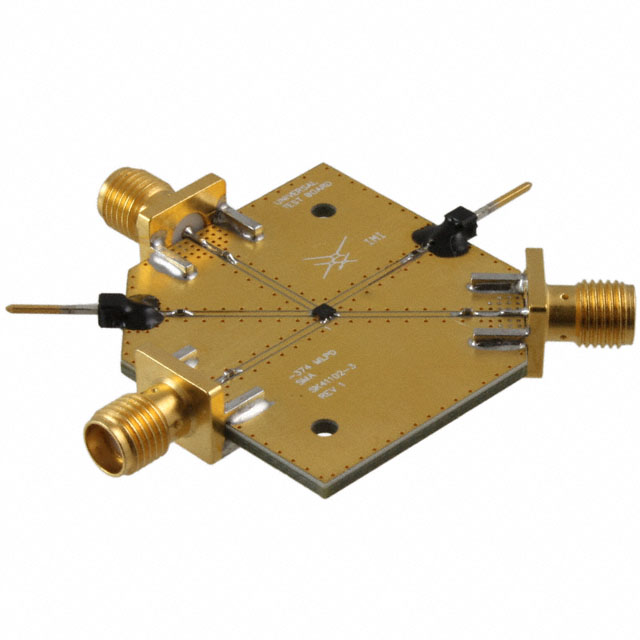

SKY13370-374LF-EVB

Active

Skyworks Solutions Inc.

RF EVAL FOR SKY13370-374LF

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

RF EVAL FOR SKY13370-374LF

Technical Specifications

Parameters and characteristics for this part

Specification	SKY13370-374LF-EVB

For Use With/Related Products	SKY13370-374LF
Frequency [Max]	6 GHz
Frequency [Min]	500 MHz
Supplied Contents	Board(s)
Type	Switch, SPDT

Part	IIP3	Frequency Range [Max]	Frequency Range [Min]	Impedance	RF Type	Test Frequency	P1dB	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Isolation	Circuit	Insertion Loss	Mounting Type	Package / Case	Type	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]
Skyworks Solutions Inc. SKY13370-374LF	55 dBm	6 GHz	500 MHz	50 Ohms	802.16 WiMAX	5.85 GHz	39 dBm	6-DFN (1.5x1.5)	-40 °C	85 °C	Absorptive	24 dB	SPDT	1.15 dB	Surface Mount	6-XFDFN Exposed Pad
Skyworks Solutions Inc. SKY13370-374LF-EVB																	Switch SPDT	Board(s)	SKY13370-374LF	6 GHz	500 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.24

General part information

- SKY13370-374LF Switch, SPDT 500MHz ~ 6GHz Evaluation Board
