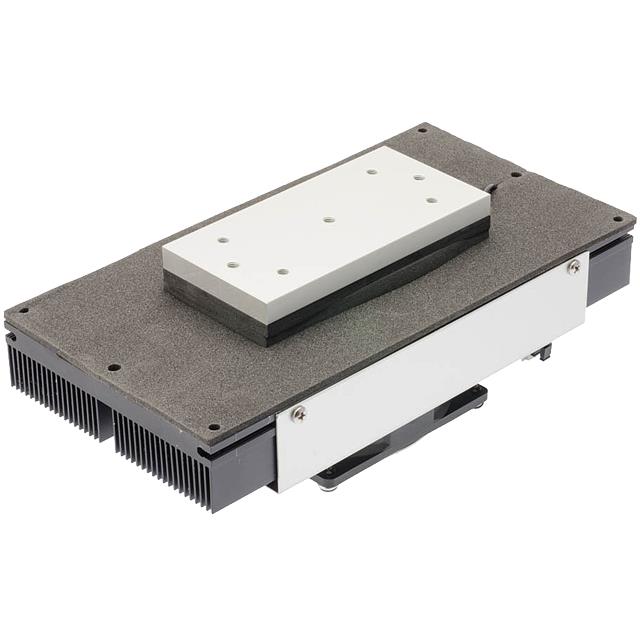

DAC060-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 58W
Deep-Dive with AI
Search across all available documentation for this part.
DAC060-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 58W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DAC060-24-02-00-00 |
|---|---|
| Current | 4.6 A |
| Dimensions - Overall [x] | 230 mm |
| Dimensions - Overall [y] | 122 mm |
| Dimensions - Overall [z] | 91 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature [Max] | 48 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 58 W |
| Power - Input | 110 W |
| Voltage | 24 V |
| Weight | 1.8 kg |
| Weight | 4 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 559.54 | |
| 5 | $ 524.57 | |||
| 10 | $ 510.58 | |||
Description
General part information
DAC060-24 Series
Direct to Air Thermoelectric Assembly 58 W
Documents
Technical documentation and resources
