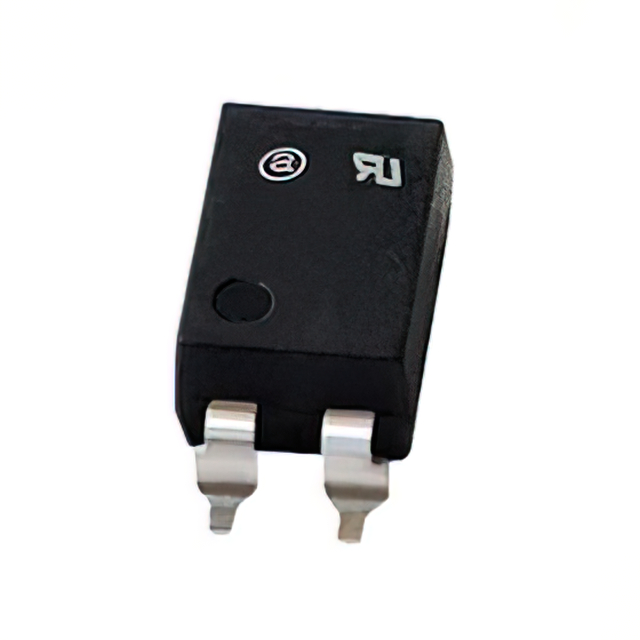

APR311A354000E00G
ActiveAmphenol Anytek
RELAY MOS 4 PIN SMD 350V AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APR311A354000E00G
ActiveAmphenol Anytek
RELAY MOS 4 PIN SMD 350V AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APR311A354000E00G |
|---|---|
| Approval Agency | cURus, UR |
| Load Current | 130 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 30 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Voltage - Input [Max] | 1.5 VDC |
| Voltage - Input [Min] | 0.9 V |
| Voltage - Load [Max] | 350 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.22 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.89 | |||
| 97 | $ 1.76 | |||
| 194 | $ 1.70 | |||
| 291 | $ 1.67 | |||
| 582 | $ 1.61 | |||
| 1067 | $ 1.56 | |||
| 5044 | $ 1.44 | |||
Description
General part information
APR311 Series
Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing
