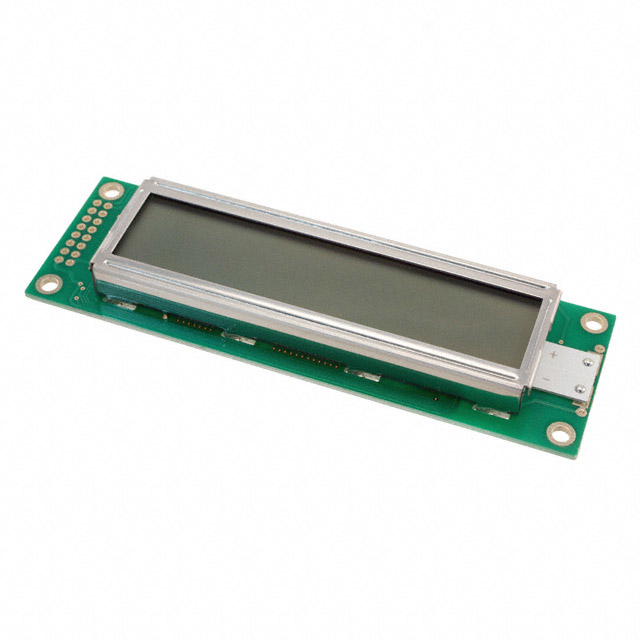

LCM-S02002DSF

Active

Lumex Opto/Components Inc.

LCD MOD 40DIG 20X2 TRANS YLW/GRN

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 40DIG 20X2 TRANS YLW/GRN

Technical Specifications

Parameters and characteristics for this part

Part	Character Size [z]	Character Size [y]	Backlight	Character Format [y]	Character Format [x]	Display Mode	Dot Size [custom]	Dot Size [custom]	Display Type	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Display Format [x]	Display Format [y]	Number of Characters	Viewing Area [x]	Viewing Area [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Background Color
Lumex Opto/Components Inc. LCM-S02002DSM-Y	5.55 mm	3.2 mm	LED - Yellow	8 Dots	5 Dots	Transflective	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	116 mm	37 mm	12.7 mm	20	2	40	85 mm	18.8 mm	4.7 V	5.3 V
Lumex Opto/Components Inc. LCM-S02002DSF-S5	5.55 mm	3.2 mm	Without Backlight	8 Dots	5 Dots		0.65 mm	0.6 mm		116 mm	37 mm	8.9 mm	20	2	40			4.7 V	5.3 V	70 °C	0 °C
Lumex Opto/Components Inc. LCM-S02002DSF	5.55 mm	3.2 mm		8 Dots	5 Dots	Transflective	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	116 mm	37 mm	12.7 mm	20	2	40							Parallel	Green
Lumex Opto/Components Inc. LCM-S02002DTF	5.55 mm	3.2 mm		8 Dots	5 Dots	Transflective	0.65 mm	0.6 mm	TN - Twisted Nematic	116 mm	28.5 mm	12.7 mm	20	2	40							Parallel
Lumex Opto/Components Inc. LCM-S02002DSR	5.55 mm	3.2 mm	Without Backlight	8 Dots	5 Dots	Reflective	0.65 mm	0.6 mm	STN - Super-Twisted Nematic	116 mm	37 mm	8.9 mm	20	2	40							Parallel	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 116.00mm x 37.00mm x 12.70mm
