E2033S.46.10

Active

Prysmian Group

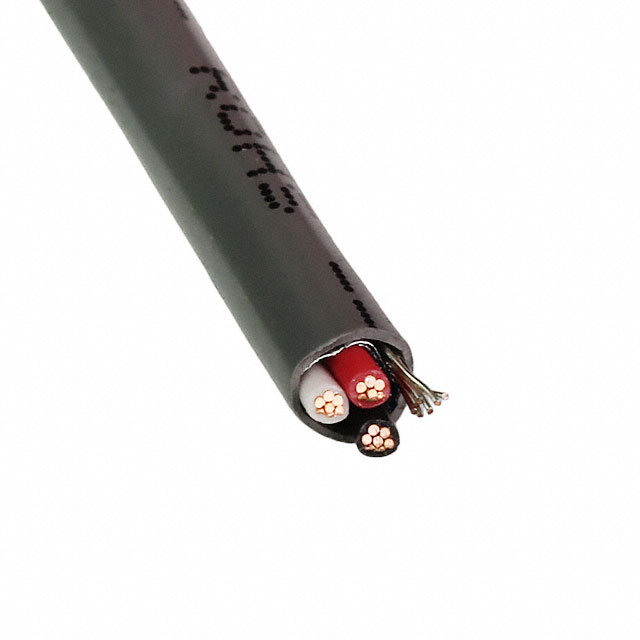

CABLE 3COND 18AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 18AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	E2033S.46.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Number of Conductors	3
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Features	Shield Coverage	Wire Gauge	Shield Material	Conductor Material	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Voltage	Length	Length	Cable Type	Shield Type
Prysmian Group E2033S.30.10	26 AWG	7	3	Drain Wire Rip Cord	100 %	18 AWG	Flexfoil®	Copper Bare	30.5 m	100 ft	0.015 in	0.381 mm	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Gray	4.27 mm	0.168 in	Poly-Vinyl Chloride (PVC)	300 V	1000 ft	304.8 m	Multi-Conductor	Foil
Prysmian Group E2033S.46.10	26 AWG	7	3	Drain Wire Rip Cord	100 %	18 AWG	Flexfoil®	Copper Bare			0.015 in	0.381 mm	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Gray	4.27 mm	0.168 in	Poly-Vinyl Chloride (PVC)	300 V			Multi-Conductor	Foil
Prysmian Group E2033S.41.10	26 AWG	7	3	Drain Wire Rip Cord	100 %	18 AWG	Flexfoil®	Copper Bare		50 ft	0.015 in	0.381 mm	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	Gray	4.27 mm	0.168 in	Poly-Vinyl Chloride (PVC)	300 V	1000 ft	15.24 m 304.8 m	Multi-Conductor	Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 0.29

General part information

3 Conductor Multi-Conductor Cable Gray 18 AWG Foil 5000' (1524.0m)

Technical documentation and resources

No documents available
