RCLAMP03354P.C

Active

Semtech Corporation

4-LINE 3.3V 0.3PF ESD SMF2510N10

Search across all available documentation for this part.

Active

Semtech Corporation

4-LINE 3.3V 0.3PF ESD SMF2510N10

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP03354P.C

Applications	HDMI2, USB 3.2
Capacitance @ Frequency	0.28 pF
Current - Peak Pulse (10/1000µs)	10 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

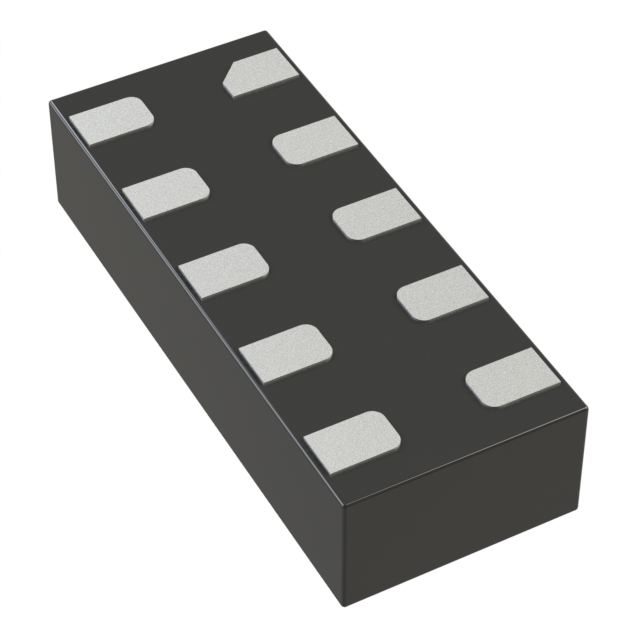

Package / Case	10-UFDFN
Power - Peak Pulse	70 W
Power Line Protection	False
Supplier Device Package	10-DFN (2.5x1)
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	5.5 V
Voltage - Clamping (Max) @ Ipp [Max]	7 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Unidirectional Channels [custom]	Package / Case	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Type	Power - Peak Pulse	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Mounting Type	Capacitance @ Frequency	Power Line Protection	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]
Semtech Corporation RCLAMP03354P.N	4	10-UFDFN	3.3 V	10 A	Zener	70 W	10-DFN (2.5x1)	5.5 V	Surface Mount	0.28 pF		HDMI2 USB 3.2	-40 °C	125 ¯C	7 V
Semtech Corporation RCLAMP03354P.C	4	10-UFDFN	3.3 V	10 A	Zener	70 W	10-DFN (2.5x1)	5.5 V	Surface Mount	0.28 pF		HDMI2 USB 3.2	-40 °C	125 ¯C	7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)

Technical documentation and resources

No documents available
