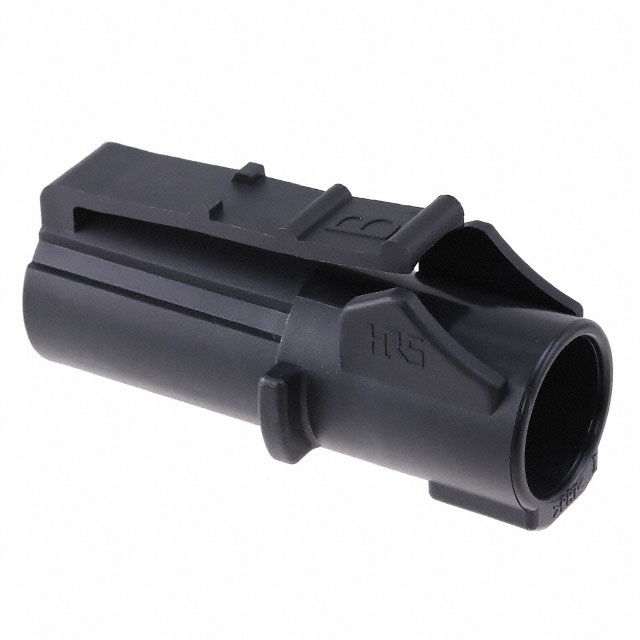

EM12MP-1PCB

Active

Hirose Electric USA, Inc.

SINGLE POS. SNAP-IN LOCK POWER CONNECTORS UP TO 90A

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

SINGLE POS. SNAP-IN LOCK POWER CONNECTORS UP TO 90A

Technical Specifications

Parameters and characteristics for this part

Specification	EM12MP-1PCB

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Snap-In
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Shell Material	Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Type	For Male Pins

Part	Contact Type	Orientation	Shielding	Material Flammability Rating	Shell Material	Fastening Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Shape	Mounting Type	Housing Color	Number of Positions	Type
Hirose Electric USA, Inc. EM12MP-1PCB	Crimp	Keyed	Unshielded	UL94 V-0	Polybutylene Terephthalate (PBT)	Snap-In	Contacts Not Included	-25 °C	105 ░C	Plug Housing	Circular	Free Hanging (In-Line)	Black	1	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 12.92
Newark	Each	1	$ 14.48
		250	$ 12.76

General part information

1 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line)
