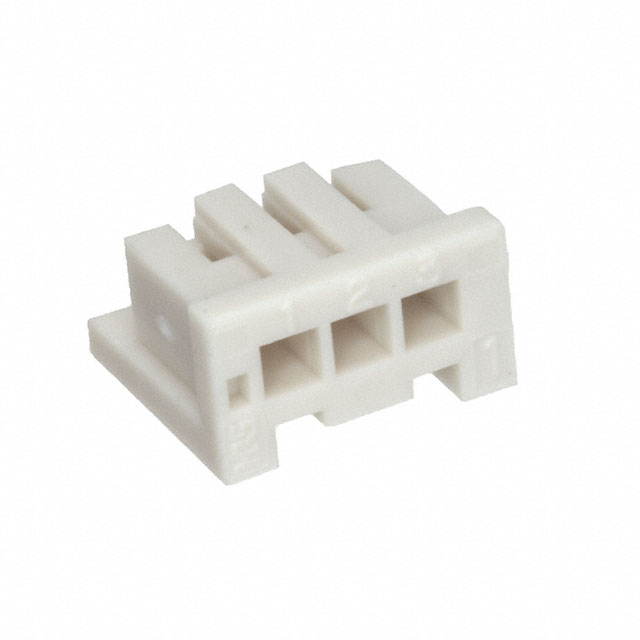

DF1-3S-2.5C

LTB

Hirose Electric USA, Inc.

CONN SOCKET HSG 3POS 2.50MM

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN SOCKET HSG 3POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Part	Accessory Type	Features	For Use With/Related Products	Number of Rows	Style	Current Rating (Amps)	Contact Material	Contact Finish - Post	Material Flammability Rating	Contact Shape	Shrouding	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Voltage Rating	Contact Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish	Features	Color	Cable Termination	Wire Gauge	Pitch [x]	Pitch [x]	Wire Type	Note	Contact Termination
Hirose Electric USA, Inc. DF1-3A1.33	Cap (Cover)	24 AWG	DF1 Series
Hirose Electric USA, Inc. DF1-3P-2.5DS(05)				1	Board to Cable/Wire	3 A	Brass	Tin	UL94 V-0	Square	Shrouded - 1 Wall	Brown	0.118 in	3 mm	1 µm	39.4 µin	Through Hole Right Angle	Nylon Polyamide (PA)	2.5 mm	0.098 in	All	250 VDC	Male Pin	6 mm	0.236 in	-30 ░C	85 °C	Friction Lock	Header	Solder	0.177 in	4.5 mm
Hirose Electric USA, Inc. DF1-3S-2.5R24(05)				1													Free Hanging (In-Line)						Female Socket						Socket				Tin	Feed Through	Brown	IDC	24 AWG	0.098 in	2.5 mm	Discrete
Hirose Electric USA, Inc. DF1-3S-2.5C				1													Free Hanging (In-Line)	Nylon Polyamide (PA)					Female Socket			-30 ░C	85 °C		Socket						Brown			0.098 in	2.5 mm		Contacts Not Included	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Socket Brown 0.098" (2.50mm)
