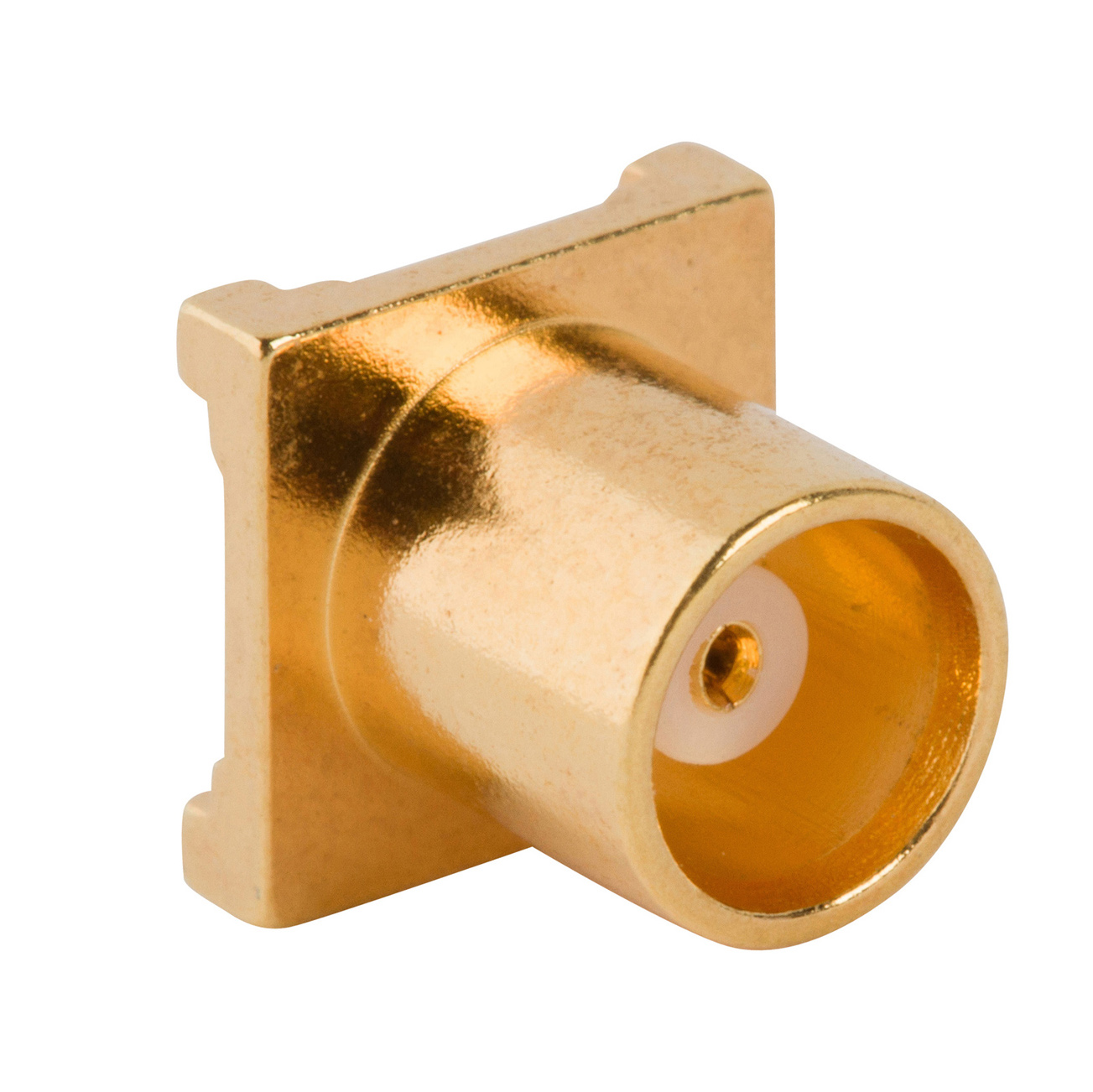

919-118J-51PT

Active

Amphenol RF

CONN MCX 0HZ TO 2GHZ 50OHM SOLDER ST SMD F GOLD T/R

Search across all available documentation for this part.

Active

Amphenol RF

CONN MCX 0HZ TO 2GHZ 50OHM SOLDER ST SMD F GOLD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	919-118J-51PT

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Housing Color	Body Finish	Dielectric Material	Voltage Rating	Insertion Loss	Frequency - Max [Max]	Center Contact Material	Impedance	Fastening Type	Connector Type	Connector Style	Body Material	Contact Termination	Shield Termination	Number of Ports	Center Contact Plating	Mounting Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol RF 919-118J-51PT	Gold	Gold	Polytetrafluoroethylene (PTFE)	500 V	0.1 dB	2 GHz	Beryllium Copper	50 Ohms	Snap-On	Female Socket Receptacle	MCX	Brass	Solder	Solder	1	Gold	Surface Mount	500	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	750	$ 8.56

General part information

MCX Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
