09620150540

Active

HARTING Technology Group

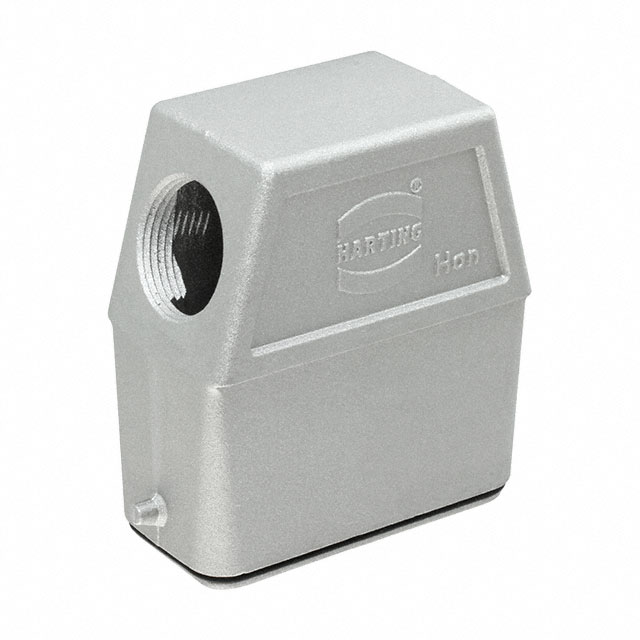

ENCLOSURE FOR CONNECTORS: HDC; SIZE 10A; FOR CABLE; IP65; EMC

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 10A; FOR CABLE; IP65; EMC

Technical Specifications

Parameters and characteristics for this part

Specification	09620150540

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Size / Dimension [x]	63.6 mm
Size / Dimension [x]	2.504 in
Size / Dimension [y]	30.5 mm
Size / Dimension [y]	1.201 in
Size / Dimension [z]	2.756 in
Size / Dimension [z]	70 mm
Style	Side Entry
Thread Size	PG16

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Lock Location	Style	Ingress Protection	Thread Size	Housing Material	Size
HARTING Technology Group 09620150540	125 °C	-40 °C	Hood	2.756 in	30.5 mm	63.6 mm	1.201 in	70 mm	2.504 in	Locking Clip (1) on Base Bottom	Side Entry	IP65 - Dust Tight Water Resistant	PG16	Aluminum Die Cast	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry PG16 10A IP65 - Dust Tight, Water Resistant
