UCLAMP3312T.TCT

Active

Semtech Corporation

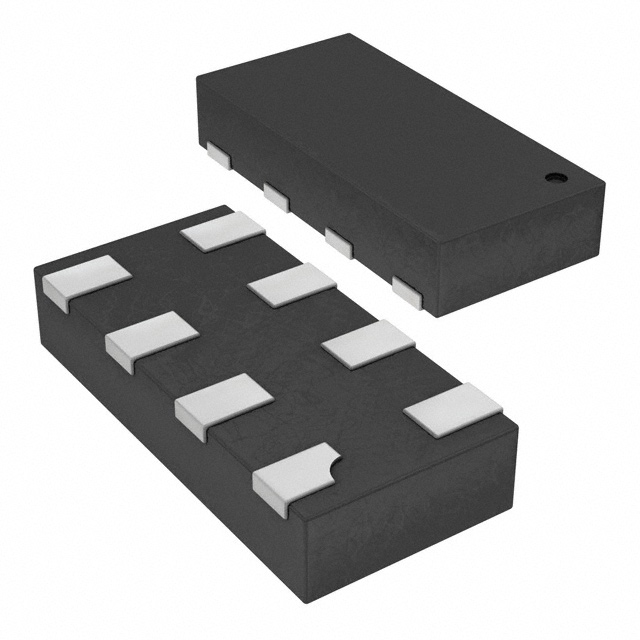

2-LINE/PAIRS 3.3V 1.3PF SLP2010N8T

Search across all available documentation for this part.

Active

Semtech Corporation

2-LINE/PAIRS 3.3V 1.3PF SLP2010N8T

Technical Specifications

Parameters and characteristics for this part

Specification	UCLAMP3312T.TCT

Applications	Ethernet
Bidirectional Channels	2
Capacitance @ Frequency	4.5 pF
Current - Peak Pulse (10/1000µs)	10 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-XFDFN
Power - Peak Pulse	100 W
Power Line Protection	False
Supplier Device Package	SLP2010N8T
Type	Zener
Voltage - Breakdown (Min) [Min]	3.5 V
Voltage - Clamping (Max) @ Ipp [Max]	11 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Voltage - Reverse Standoff (Typ)	Mounting Type	Type	Applications	Voltage - Breakdown (Min) [Min]	Power Line Protection	Bidirectional Channels	Current - Peak Pulse (10/1000µs)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Power - Peak Pulse	Capacitance @ Frequency
Semtech Corporation UCLAMP3312T.TCT	3.3 V	Surface Mount	Zener	Ethernet	3.5 V		2	10 A	-40 °C	85 °C	SLP2010N8T	11 V	8-XFDFN	100 W	4.5 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SLP2010N8T
