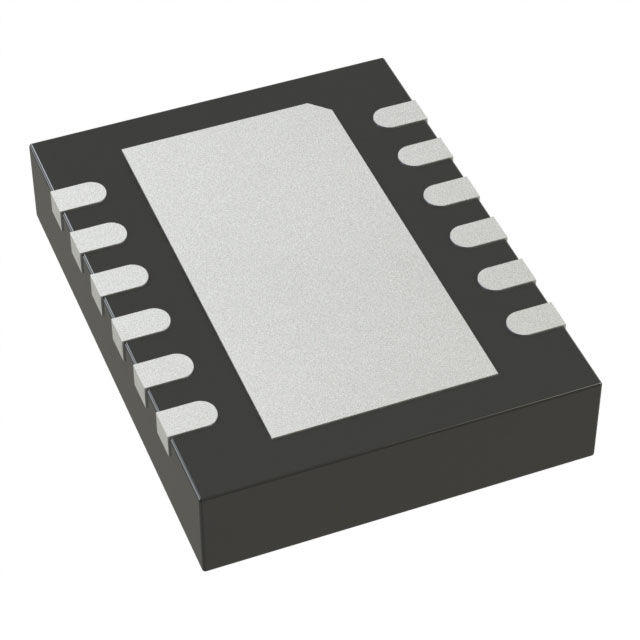

LTC4376HDHD#TRPBF
Active7A IDEAL DIODE WITH REVERSE INPUT PROTECTION
Deep-Dive with AI
Search across all available documentation for this part.
LTC4376HDHD#TRPBF
Active7A IDEAL DIODE WITH REVERSE INPUT PROTECTION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTC4376HDHD#TRPBF |
|---|---|
| Applications | Computer Systems, Redundant Power Supplies, Portable Battery |
| Current - Output (Max) | 7 A |
| Current - Supply | 150 µA |
| Delay Time - OFF | 300 ns |
| FET Type | N-Channel |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-WFDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Supplier Device Package | 16-DFN (5x4) |
| Voltage - Supply [Max] | 40 VDC |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.36 | |
| 10 | $ 7.96 | |||
| 25 | $ 7.08 | |||
| 100 | $ 6.10 | |||
| 250 | $ 5.63 | |||
| 500 | $ 5.34 | |||
| 1000 | $ 5.10 | |||
| Digi-Reel® | 1 | $ 11.36 | ||
| 10 | $ 7.96 | |||
| 25 | $ 7.08 | |||
| 100 | $ 6.10 | |||
| 250 | $ 5.63 | |||
| 500 | $ 5.34 | |||
| 1000 | $ 5.10 | |||
| Tape & Reel (TR) | 2500 | $ 5.08 | ||
Description
General part information
LTC4376 Series
The LTC4376 is a 7A ideal diode that uses an internal 15mΩ N-channel MOSFET to replace a Schottky diode when used in diode-OR and high current diode applications. The LTC4376 reduces power consumption, heat dissipation and PC board area.The LTC4376 controls the forward voltage drop across the internal MOSFET to ensure smooth current delivery without oscillation even at light loads. If a power source fails or is shorted, a fast turn-off minimizes reverse current transients. The LTC4376 also easily ORs power sources to increase total system reliability.With its low operating voltage, small solution size and the ability to withstand reverse input voltage, the LTC4376 excels in portable battery applications. A shutdown mode is available to reduce the quiescent current to 9μA. TheSHDNpin can also control the forward current path when an external MOSFET is used in series with the internal MOSFET in a back-to-back configuration.ApplicationsAutomotive Battery ProtectionRedundant Power SuppliesPortable Battery DevicesComputer Systems/Servers
