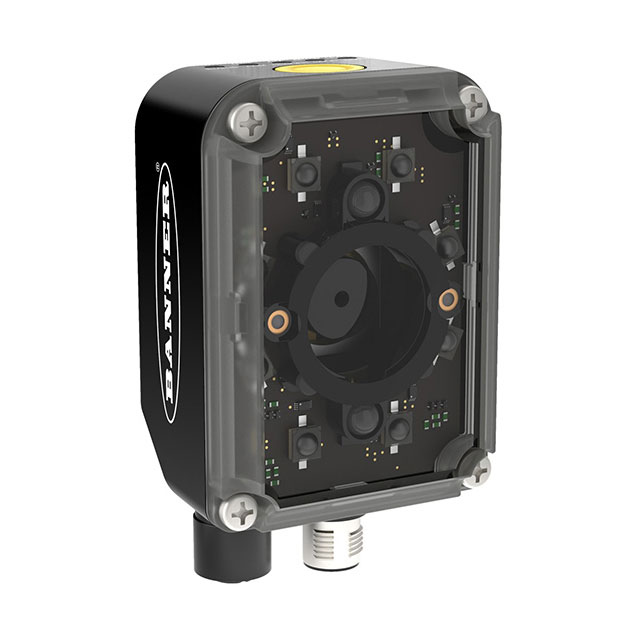

ABR71L9-RSE2

Active

BANNER ENGINEERING

BARCODE SCANNER, 1280 X 1024 PIXELS, GRAYSCALE, ETHERNET, PC INTERFACE, 1D / 2D, ABR 7000 SERIES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

BARCODE SCANNER, 1280 X 1024 PIXELS, GRAYSCALE, ETHERNET, PC INTERFACE, 1D / 2D, ABR 7000 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Type	Termination Style	Resolution	Resolution [x]	Resolution [y]	Mounting Type	Image Type	Light Source
BANNER ENGINEERING ABR71L9-RSE2	45 °C	0 °C	CMOS	30 VDC	10 VDC	IP67 - Dust Tight Waterproof	Bar Code Reader	Cable with Connector	1.3 MP	1280	1024	Chassis Mount	Monochrome	Integrated (Red)
BANNER ENGINEERING ABR71L9-MSE2	45 °C	0 °C	CMOS	30 VDC	10 VDC	IP67 - Dust Tight Waterproof	Bar Code Reader	Cable with Connector	1.3 MP	1280	1024	Chassis Mount	Monochrome	Integrated (Blue Red)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BARCODE SCANNER, 1280 X 1024 PIXELS, GRAYSCALE, ETHERNET, PC INTERFACE, 1D / 2D, ABR 7000 SERIES

Technical documentation and resources
