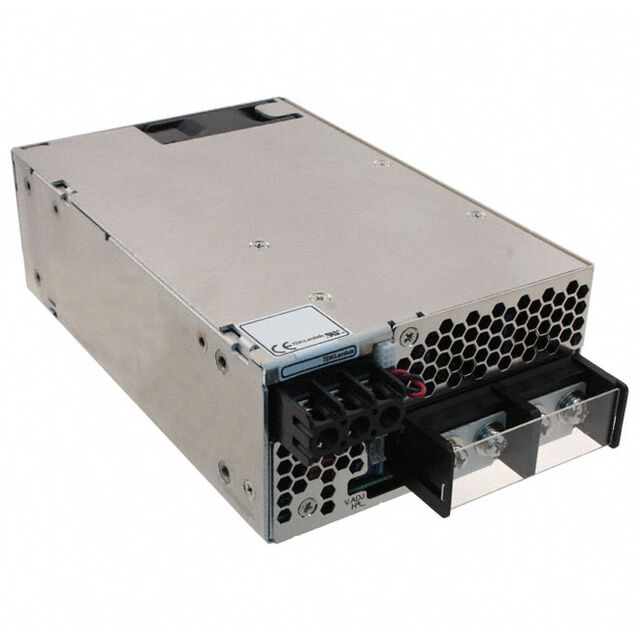

SWS600L-48
ActiveAC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 624W, 85V AC TO 265V AC
Deep-Dive with AI
Search across all available documentation for this part.
SWS600L-48
ActiveAC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 624W, 85V AC TO 265V AC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SWS600L-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 13 A |
| Efficiency | 84 % |
| Features | Universal Input, Remote Sense, Remote On/Off, Adjustable Output, Load Sharing, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 624 W |
| Size / Dimension [x] | 7.48 " |
| Size / Dimension [x] | 190 mm |
| Size / Dimension [y] | 4.72 in |
| Size / Dimension [y] | 120 mm |
| Size / Dimension [z] | 61 mm |
| Size / Dimension [z] | 2.4 in |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SWS600L Series
The SWS600L-48 is a 48V/624W 1-output open-frame Power Supply with quiet temperature controlled fan, low profile, active power factor correction and low acoustic noise. SWS1000L-series supports global use. Suitable for outdoor temperature extremes, assists system compliance. This power supply output is fixed and can be adjustable.
