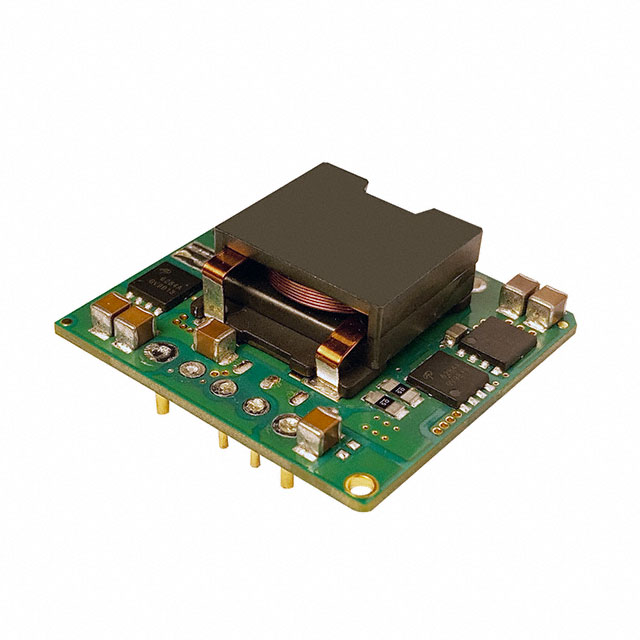

I7C4W012A050V-001-R

Active

TDK-LAMBDA

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 300 W, 5 V, 28 V, 12.5 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

I7C4W012A050V-001-R

Active

TDK-LAMBDA

NON ISOLATED POL DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 300 W, 5 V, 28 V, 12.5 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	I7C4W012A050V-001-R

Applications	ITE (Commercial)
Approval Agency	cURus, CE, IEC
Control Features	Active Low, Enable
Current - Output (Max) [Max]	12.5 A
Efficiency	97 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	300 W
Size / Dimension [x]	1.45 "
Size / Dimension [x]	36.8 mm
Size / Dimension [y]	1.34 in
Size / Dimension [y]	34 mm
Size / Dimension [z]	12.2 mm
Size / Dimension [z]	0.48 in
Standard Number	60950-1, 62368-1
Supplier Device Package	Sixteenth Brick
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	53 V
Voltage - Input (Min) [Min]	9 V
Voltage - Output 1 [Max]	28 V
Voltage - Output 1 [Min]	5 V

I7C4W008 Series

Non-Isolated DC/DC Converters DC DC CONVERTER 10-48V 300W

Part	Control Features	Standard Number	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Power (Watts)	Number of Outputs	Type	Package / Case	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current - Output (Max) [Max]	Mounting Type	Approval Agency	Voltage - Input (Min) [Min]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [z]
TDK-LAMBDA I7C4W008A120V-002-R	Active High Enable	60950-1 62368-1	53 V	96 %	48 V	9.6 V	300 W	1	Non-Isolated PoL Module	Sixteenth Brick	ITE (Commercial)	1.34 in	34 mm	12.2 mm	1.45 "	0.48 in	36.8 mm	125 °C	-40 °C	Adjustable Output Imon PGood Remote On/Off Sync	8 A	Through Hole	CE cURus IEC	9 V	Sixteenth Brick
TDK-LAMBDA I7C4W012A050V-003-R	Active Low Enable	60950-1 62368-1	53 V	97 %	28 V	5 V	300 W	1	Non-Isolated PoL Module	Sixteenth Brick	ITE (Commercial)	1.34 in	34 mm	12.2 mm	1.45 "	0.48 in	36.8 mm	125 °C	-40 °C	Adjustable Output Imon PGood Remote On/Off Sync	12.5 A	Through Hole	CE cURus IEC	9 V	Sixteenth Brick
TDK-LAMBDA I7C4W012A050V-001-R	Active Low Enable	60950-1 62368-1	53 V	97 %	28 V	5 V	300 W	1	Non-Isolated PoL Module	Sixteenth Brick	ITE (Commercial)	1.34 in	34 mm	12.2 mm	1.45 "	0.48 in	36.8 mm	125 °C	-40 °C	Adjustable Output Remote On/Off	12.5 A	Through Hole	CE cURus IEC	9 V	Sixteenth Brick
TDK-LAMBDA I7C4W012A050V-002-R	Active High Enable	60950-1 62368-1	53 V	97 %	28 V	5 V	300 W	1	Non-Isolated PoL Module	Sixteenth Brick	ITE (Commercial)	1.34 in	34 mm	12.2 mm	1.45 "	0.48 in	36.8 mm	125 °C	-40 °C	Adjustable Output Imon PGood Remote On/Off Sync	12.5 A	Through Hole	CE cURus IEC	9 V	Sixteenth Brick
TDK-LAMBDA I7C4W012A050V-0C1-R	Active Low Enable	60950-1 62368-1	53 V	97 %	28 V	5 V	300 W	1	Non-Isolated PoL Module	Sixteenth Brick	ITE (Commercial)	1.34 in			1.45 "	0.51 in	36.8 mm	125 °C	-40 °C	Adjustable Output Baseplate Remote On/Off	12.5 A	Through Hole	CE cURus IEC	9 V	Sixteenth Brick	34 mm	13 mm
TDK-LAMBDA I7C4W008A120V-001-R	Active Low Enable	60950-1 62368-1	53 V	96 %	48 V	9.6 V	300 W	1	Non-Isolated PoL Module	Sixteenth Brick	ITE (Commercial)	1.34 in	34 mm	12.2 mm	1.45 "	0.48 in	36.8 mm	125 °C	-40 °C	Adjustable Output Remote On/Off	8 A	Through Hole	CE cURus IEC	9 V	Sixteenth Brick
TDK-LAMBDA I7C4W008A120V-003-R	Active Low Enable	60950-1 62368-1	53 V	96 %	48 V	9.6 V	300 W	1	Non-Isolated PoL Module	Sixteenth Brick	ITE (Commercial)	1.34 in	34 mm	12.2 mm	1.45 "	0.48 in	36.8 mm	125 °C	-40 °C	Adjustable Output Imon PGood Remote On/Off Sync	8 A	Through Hole	CE cURus IEC	9 V	Sixteenth Brick
TDK-LAMBDA I7C4W008A120V-0F1-R	Active Low Enable	60950-1 62368-1	53 V	96 %	48 V	9.6 V	300 W	1	Non-Isolated PoL Module	Sixteenth Brick	ITE (Commercial)	1.34 in	34 mm	24.9 mm	1.45 "	0.98 in	36.8 mm	125 °C	-40 °C	Adjustable Output Heat Sink Remote On/Off	8 A	Through Hole	CE cURus IEC	9 V	Sixteenth Brick

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.50
		25	$ 55.39
		50	$ 51.79
Newark	Each	1	$ 79.20
Sager	N/A	1	$ 56.50
		10	$ 55.37
		25	$ 55.54
		50	$ 54.25
		100	$ 52.17
		200	$ 50.19

Description

General part information

I7C4W008 Series

Non-Isolated DC/DC Converters DC DC CONVERTER 10-48V 300W

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Manufacturer Catalogue EN

Datasheet
