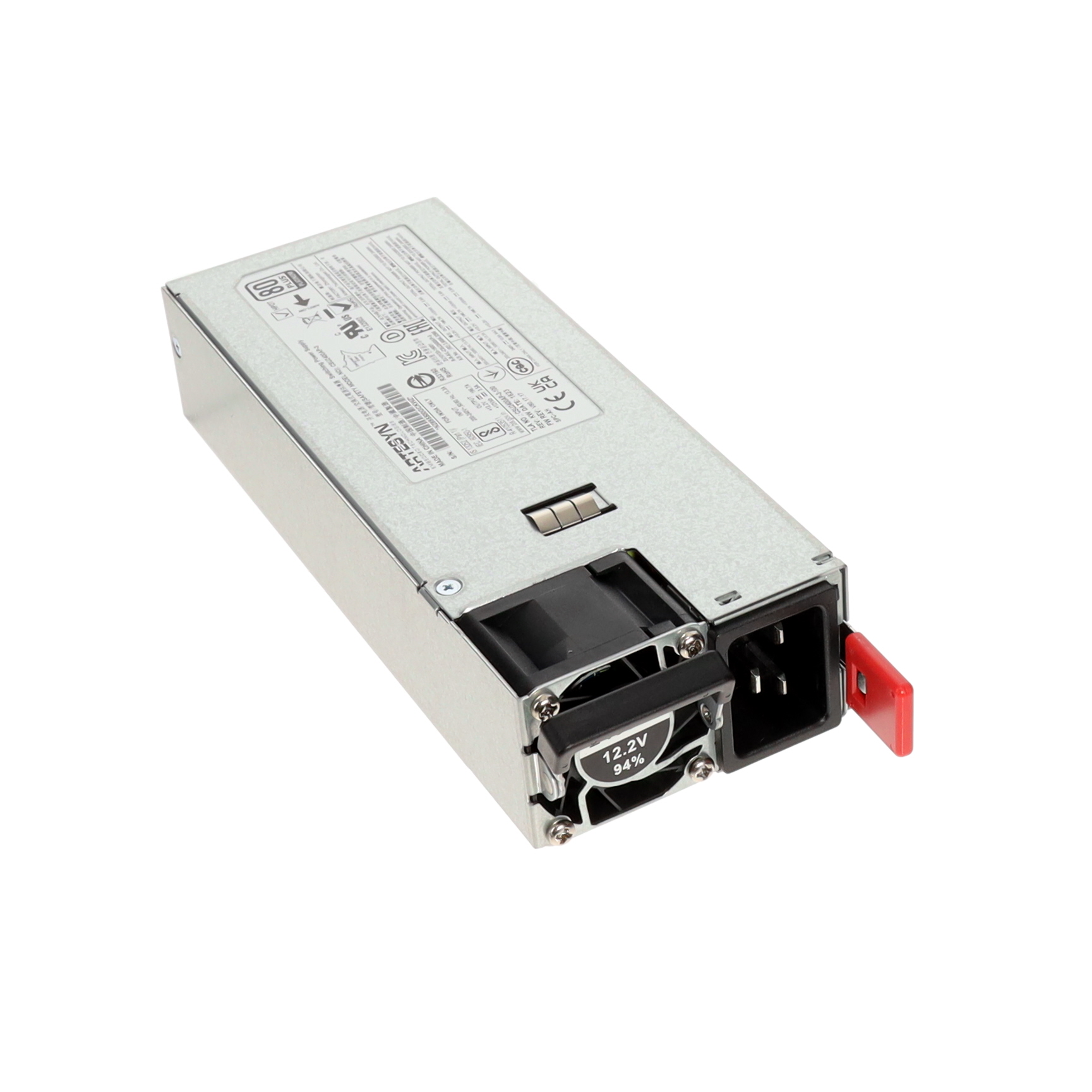

CSU2400AP-3-100

Active

ARTESYN / Advanced Energy

RACK MOUNT POWER SUPPLIES 12.2V AND 12VSB OUTPUT, 2400W 1U X 2.89 X 7.28 PLATINUM, FORWARD AIR

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

RACK MOUNT POWER SUPPLIES 12.2V AND 12VSB OUTPUT, 2400W 1U X 2.89 X 7.28 PLATINUM, FORWARD AIR

Technical Specifications

Parameters and characteristics for this part

Specification	CSU2400AP-3-100

Applications	ITE (Commercial)
Approval Agency	CQC, CE, CB, EAC, KC, UL, cUL
Current - Output 1	196.7 A
Efficiency	94 %
Features	Load Sharing, PMBus™, Adjustable Output, PFC, Standby Output
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-5 °C
Power (Watts)	2400 W
Size / Dimension [x]	7.28 in
Size / Dimension [x]	185 mm
Size / Dimension [y]	2.89 in
Size / Dimension [y]	73.5 mm
Size / Dimension [z]	39 mm
Size / Dimension [z]	1.54 "
Type	Front End
Voltage - Input [Max]	264 VAC, 127 VAC
Voltage - Input [Min]	90 VAC, 180 VAC
Voltage - Output 1	12.2 V

Part	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Features	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Mounting Type	Approval Agency	Current - Output 1	Type	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Voltage - Output 1
ARTESYN / Advanced Energy CSU2400AP-3-100	1	55 °C	-5 °C	Adjustable Output Load Sharing PFC PMBus™ Standby Output	94 %	7.28 in	2.89 in	73.5 mm	39 mm	185 mm	1.54 "	2400 W	Rack Mount	CB CE CQC cUL EAC KC UL	196.7 A	Front End	127 VAC 264 VAC	90 VAC 180 VAC	ITE (Commercial)	12.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 12.2V 90 ~ 127 VAC, 180 ~ 264 VAC Input
