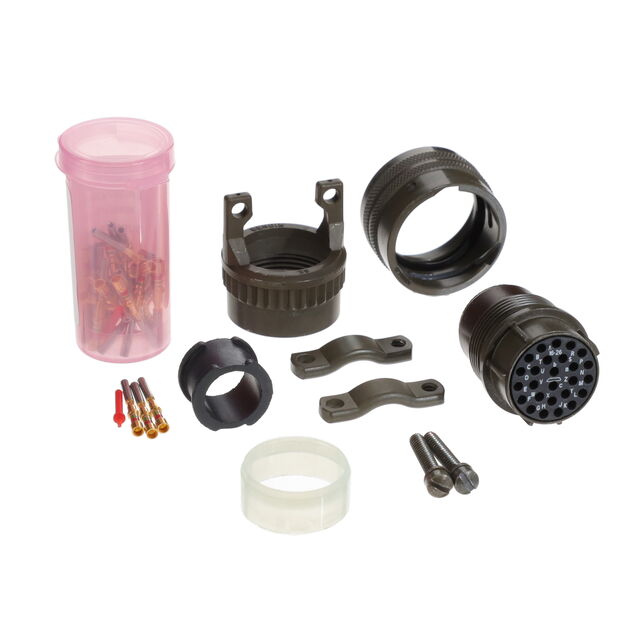

MS3126F16-26SW

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

MS3126F16-26SW

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3126F16-26SW

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Cable Opening [custom]	12.7 mm
Cable Opening [custom]	0.5 in
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Strain Relief, Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	W
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

MS3126F16 Series

Part	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Termination	Contact Finish - Mating	Ingress Protection	Connector Type	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Shielding	Color	Insert Material	Shell Material	Features	Orientation	Mounting Type	Voltage Rating	Fastening Type	Applications	Number of Positions	Primary Material	Grade	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Backshell Material, Plating
Amphenol Industrial Operations MS3126F16-99S	16	99	Crimp	Gold	Environment Resistant	Female Sockets Plug	MIL-DTL-26482 Series I	-55 °C	125 °C	Olive Drab Chromate over Cadmium	12.7 mm	0.5 in	7.5 A 13 A	Unshielded	Olive Drab	Neoprene	Aluminum	Coupling Nut Strain Relief	N	Free Hanging (In-Line)	600 VAC	Bayonet Lock	Aerospace Industrial Instrumentation Mass Transit Military	23	Metal	Military	Copper Alloy
Amphenol Industrial Operations MS3126F16-8P(LC)
Amphenol Industrial Operations MS3126F16-23P			Crimp	Gold	Environment Resistant	Male Pins Plug	MIL-DTL-26482 Series I	-55 °C	125 °C	Olive Drab Chromate over Cadmium	12.7 mm	0.5 in	7.5 A 13 A	Unshielded	Olive Drab	Neoprene	Aluminum	Coupling Nut Strain Relief	N	Free Hanging (In-Line)	600 VAC	Bayonet Lock	Aerospace Industrial Instrumentation Mass Transit Military	23	Metal	Military	Copper Alloy	16	23
Amphenol Industrial Operations MS3126F16-26SW			Crimp	Gold	Environment Resistant	Female Sockets Plug	MIL-DTL-26482 Series I	-55 °C	125 °C	Olive Drab Chromate over Cadmium	12.7 mm	0.5 in	7.5 A	Unshielded	Olive Drab	Neoprene	Aluminum	Coupling Nut Strain Relief	W	Free Hanging (In-Line)	600 VAC	Bayonet Lock	Aerospace Industrial Instrumentation Mass Transit Military	26	Metal	Military	Copper Alloy	16	26
Amphenol Industrial Operations MS3126F16-26PX			Crimp	Gold	Environment Resistant	Male Pins Plug	MIL-DTL-26482 Series I	-55 °C	125 °C	Olive Drab Chromate over Cadmium				Unshielded	Olive Drab	Neoprene	Aluminum	Backshell Cable Clamp Coupling Nut	X	Free Hanging (In-Line)		Bayonet Lock	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	26	Metal	Military	Copper Alloy	16	26	Aluminum Olive Drab Chromate over Cadmium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 101.61
		10	$ 93.24
		25	$ 89.66
		50	$ 86.67
		100	$ 81.89

Description

General part information

MS3126F16 Series

26 Position Circular Connector Plug, Female Sockets Crimp
