5646AB9

Active

APEM

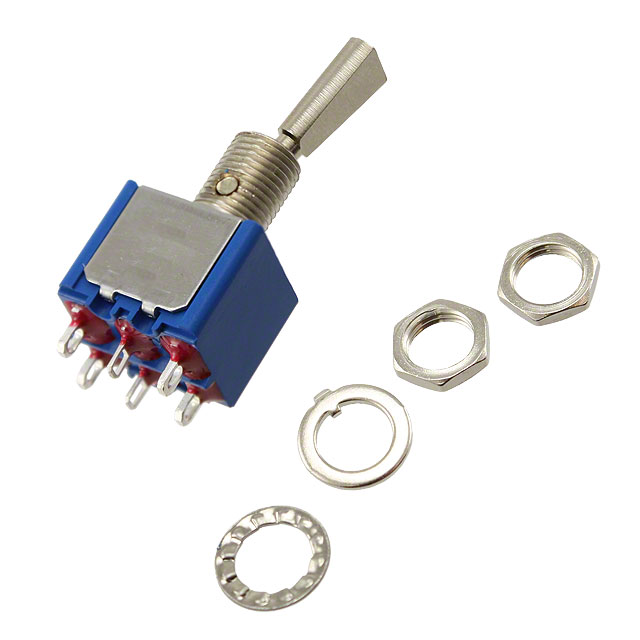

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	5646AB9

Actuator Length [x]	11.4 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Flatted
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Bushing Thread	Actuator Length [x]	Features	Switch Function	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Voltage Rating - AC	Illumination	Actuator Type	Termination Style	Actuator Material	Circuit
APEM 5646AB1V	4 A 6 A	85 °C	-40 °C	50000 Cycles	1/4-40	14.85 mm	Epoxy Sealed Terminals	On-On	6.5 mm	30 V	125 V	Non-Illuminated	Locking Lever	Solder Lug	Brass Nickel Plated	DPDT
APEM 5646AKB	4 A 6 A	85 °C	-40 °C	50000 Cycles	1/4-40		Front Panel Sealing	On-On	6.5 mm	30 V	125 V	Non-Illuminated	Standard Round	Solder Lug	Brass Nickel Plated	DPDT
APEM 5646AB2VULCSA	4 A 6 A	85 °C	-40 °C	50000 Cycles	1/4-40	14.75 mm	Epoxy Sealed Terminals	On-On	6.5 mm	30 V	125 V	Non-Illuminated	Locking Lever	Solder Lug	Brass Nickel Plated	DPDT
APEM 5646AB9	4 A 6 A	85 °C	-40 °C	50000 Cycles		11.4 mm	Epoxy Sealed Terminals	On-On	6.5 mm	30 V	125 V	Non-Illuminated	Flatted	Solder Lug	Brass Nickel Plated	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
