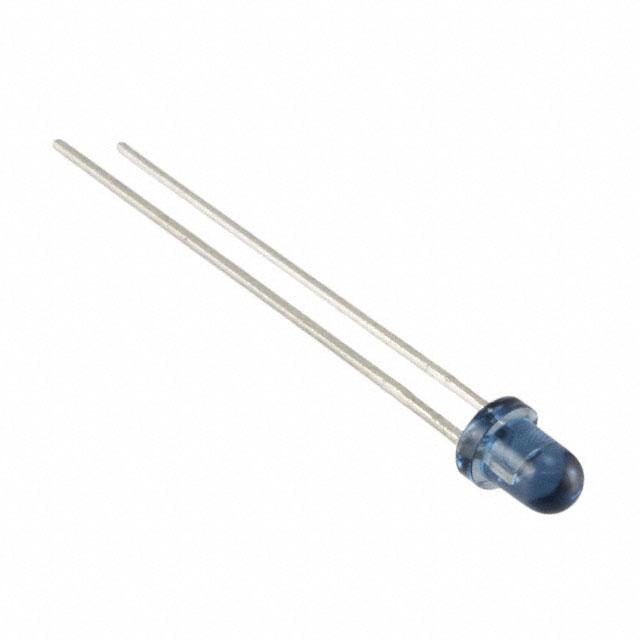

WP3DP3BT

Active

Kingbright

100MW 30V 100NA PLUGIN PHOTOTRANSISTORS ROHS

Search across all available documentation for this part.

Active

Kingbright

100MW 30V 100NA PLUGIN PHOTOTRANSISTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	WP3DP3BT

Current - Collector (Ic) (Max) [Max]	500 µA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Power - Max [Max]	100 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Dark (Id) (Max) [Max]	Wavelength	Orientation	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Viewing Angle	Package / Case	Current - Collector (Ic) (Max) [Max]
Kingbright WP3DP3BT/BD-P22	85 °C	-40 °C	Through Hole	100 nA	940 nm	Top View	100 mW	30 V	50 °	Radial
Kingbright WP3DP3BT	85 °C	-40 °C	Through Hole	100 nA		Top View	100 mW	30 V		Radial	500 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors Top View Radial
