2952198

Active

Phoenix Contact

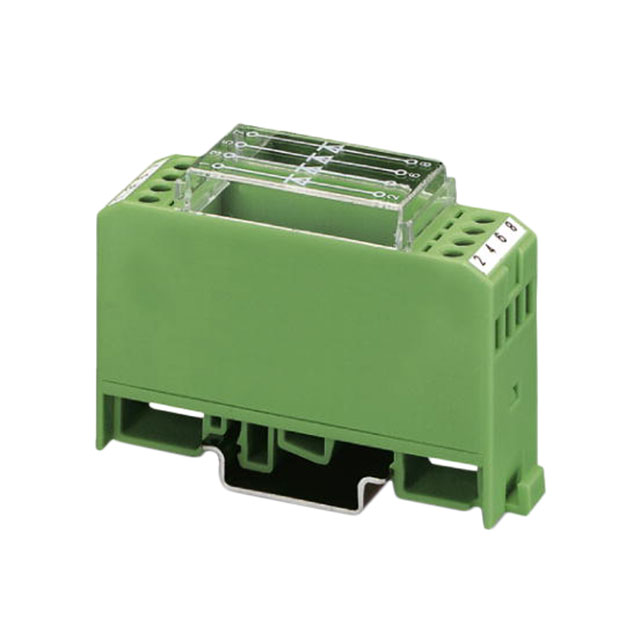

DIODE MODULE GP 1000V

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1000V

Technical Specifications

Parameters and characteristics for this part

Specification	2952198

Current - Reverse Leakage @ Vr	10 çA
Diode Configuration	4 Common Cathode
Mounting Type	DIN Rail
Operating Temperature - Junction [Max]	50 °C
Operating Temperature - Junction [Min]	-20 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V

Part	Mounting Type	Features	Contact Material	Coil Voltage	Coil Current	Relay Type	Coil Resistance	Switching Voltage	Contact Rating (Current)	Termination Style	Release Time	Contact Form	Approval Agency	Operate Time	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Technology	Diode Configuration	Supplier Device Package	Speed	Speed	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]
Phoenix Contact 2952169	DIN Rail	Diode Lighted Indicator Socket Included	Silver Nickel (AgNi)	24 VDC	21 mA	General Purpose	1142 Ohms	250 VAC 250 VDC	5 A	Screw Terminal	10 ms	SPDT (1 Form C)	EAC	9 ms	120 W 1250 VA	50 °C	-20 C	Non Latching
Phoenix Contact 2952185	DIN Rail	Diode Socket Included	Silver Nickel (AgNi)	230 VAC	16 mA	General Purpose	14.4 kOhms	110 VDC 250 VAC	3 A	Screw Terminal	25 ms	DPDT (2 Form C)	EAC	15 ms		50 °C	-20 C	Non Latching
Phoenix Contact 2952198	DIN Rail																		Standard	4 Common Cathode	Module	Standard Recovery >500ns	200 mA	Module	10 çA	50 °C	-20 °C	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.08

General part information

Diode Array 4 Common Cathode 1000 V DIN Rail Module
