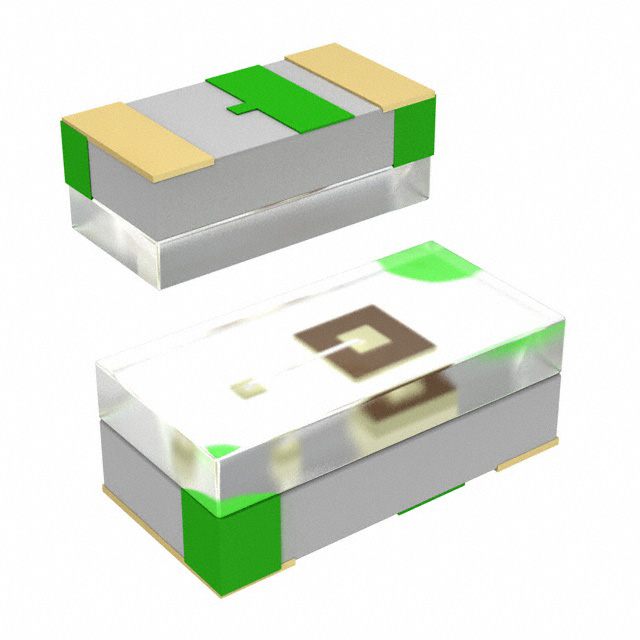

LB QH9G-N1OO-35-1-5-R18
Activeams-OSRAM USA INC.
LED BLUE DIFFUSED 0402 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB QH9G-N1OO-35-1-5-R18
Activeams-OSRAM USA INC.
LED BLUE DIFFUSED 0402 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB QH9G-N1OO-35-1-5-R18 |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 0.4 mm |
| Lens Color | White |
| Lens Size [x] | 1 mm |
| Lens Size [y] | 0.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 49.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 |
| Voltage - Forward (Vf) (Typ) | 2.85 V |
| Wavelength - Dominant | 466 nm |
| Wavelength - Peak | 472 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| Tape & Reel (TR) | 4000 | $ 0.10 | ||
| 8000 | $ 0.09 | |||
| 12000 | $ 0.08 | |||
| 28000 | $ 0.08 | |||
| 100000 | $ 0.07 | |||
Description
General part information
LBQH9G Series
Blue 466nm LED Indication - Discrete 2.85V 0402 (1005 Metric)
