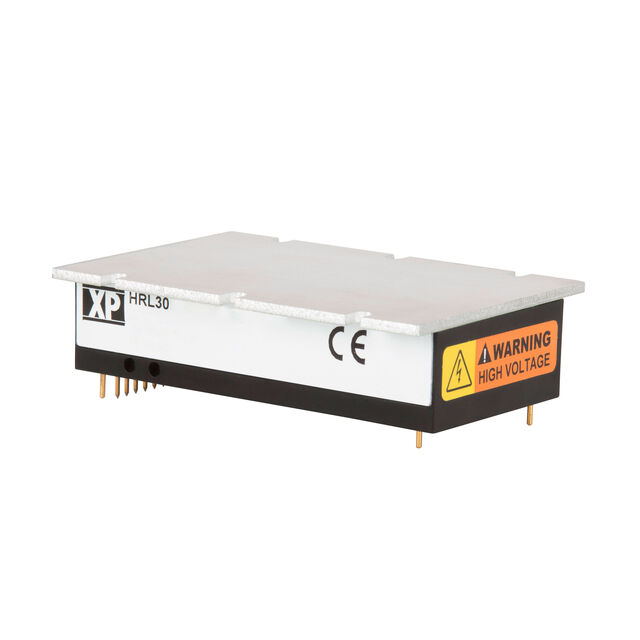

HRL3024S600N

Active

XP POWER

DC DC CONVERTER -600V 30W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER -600V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	HRL3024S600N

Applications	ITE (Commercial)
Approval Agency	CE, UKCA, UL
Current - Output (Max) [Max]	50 mA
Efficiency	85 %
Features	Adjustable Output, Baseplate
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	76.2 mm
Size / Dimension [x]	3 "
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	0.73 in
Size / Dimension [z]	18.6 mm
Standard Number	62368-1
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	30 V
Voltage - Input (Min) [Min]	22 V
Voltage - Output 1	-600 V

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Input (Min) [Min]	Approval Agency	Number of Outputs	Current - Output (Max) [Max]	Power (Watts)	Features	Standard Number	Efficiency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Mounting Type	Package / Case
XP POWER HRL3024S5K0P	High Voltage - Non-Isolated Module	-40 °C	70 °C	ITE (Commercial)	22 V	CE UKCA UL	1	6 mA	30 W	Adjustable Output Baseplate	62368-1	85 %	5000 V	50.8 mm	0.73 in	76.2 mm	3 "	18.6 mm	2 in	30 V	Through Hole	14-DIP Module
XP POWER HRL3024S600N	High Voltage - Non-Isolated Module	-40 °C	70 °C	ITE (Commercial)	22 V	CE UKCA UL	1	50 mA	30 W	Adjustable Output Baseplate	62368-1	85 %	-600 V	50.8 mm	0.73 in	76.2 mm	3 "	18.6 mm	2 in	30 V	Through Hole	14-DIP Module
XP POWER HRL3024S600P	High Voltage - Non-Isolated Module	-40 °C	70 °C	ITE (Commercial)	22 V	CE UKCA UL	1	50 mA	30 W	Adjustable Output Baseplate	62368-1	85 %	600 V	50.8 mm	0.73 in	76.2 mm	3 "	18.6 mm	2 in	30 V	Through Hole	14-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output -600V 50mA 22V - 30V Input
