FR01AR16HB-S

Active

NKK Switches

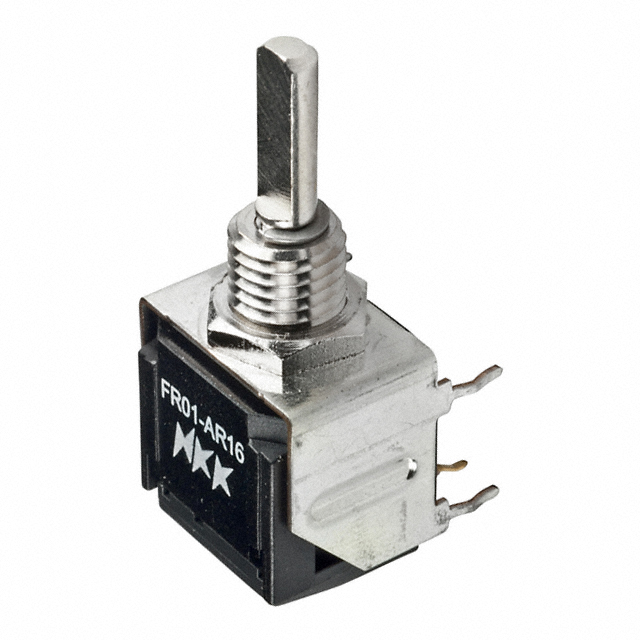

ROTARY SWITCH, 16 POSITION, 1 POLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FR01AR16HB-S

Active

NKK Switches

ROTARY SWITCH, 16 POSITION, 1 POLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FR01AR16HB-S

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board [z]	11 mm
Height Above Board [z]	0.433 in
Length	13.11 mm
Length [x]	0.516 "
Mechanical Life	10000 Steps
Mounting Type	Right Angle, Panel Mount
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	False

FR01AR16 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Length	Length [x]	Actuator Type	Electrical Life	Contact Material	Actuator Level	Contact Finish	Current Rating (Amps)	Pitch [x]	Pitch	Pitch [x]	Termination Style	Body Material	Mechanical Life	Height Above Board	Height Above Board	Circuit	Mounting Type	Height Above Board [z]	Height Above Board [z]
NKK Switches FR01AR16PB-W	-25 °C	85 °C	16	5 V	13.11 mm	0.516 "	Rotary with Shaft	10000 Cycles	Copper Alloy	Raised	Gold	100 mA	0.1 in	Full	2.54 mm	PC Pin	Polyamide (PA) Nylon Glass Filled	10000 Steps	28.05 mm	1.104 in	Hexadecimal
NKK Switches FR01AR16PB	-25 °C	85 °C	16	5 V	13.11 mm	0.516 "	Rotary with Shaft	10000 Cycles	Copper Alloy	Raised	Gold	100 mA	0.1 in	Full	2.54 mm	PC Pin	Polyamide (PA) Nylon Glass Filled	10000 Steps	28.05 mm	1.104 in	Hexadecimal
NKK Switches FR01AR16H	-25 °C	85 °C	16	5 V	13.11 mm	0.516 "	Rotary with Shaft	10000 Cycles	Copper Alloy	Raised	Gold	100 mA	0.1 in	Full	2.54 mm	PC Pin	Polyamide (PA) Nylon Glass Filled	10000 Steps			Hexadecimal	Panel Mount Right Angle	11 mm	0.433 in
NKK Switches FR01AR16HB-S	-25 °C	85 °C	16	5 V	13.11 mm	0.516 "	Rotary with Shaft	10000 Cycles	Copper Alloy	Raised	Gold	100 mA	0.1 in	Full	2.54 mm	PC Pin	Polyamide (PA) Nylon Glass Filled	10000 Steps			Hexadecimal	Panel Mount Right Angle	11 mm	0.433 in
NKK Switches FR01AR16HB-06XL-S	-25 °C	85 °C	16	5 V	13.11 mm	0.516 "	Rotary with Shaft	10000 Cycles	Copper Alloy	Raised	Gold	100 mA	0.1 in	Full	2.54 mm	PC Pin	Polyamide (PA) Nylon Glass Filled	10000 Steps			Hexadecimal	Panel Mount Right Angle	11 mm	0.433 in
NKK Switches FR01AR16HB-06XL-W	-25 °C	85 °C	16	5 V	13.11 mm	0.516 "	Rotary with Shaft	10000 Cycles	Copper Alloy	Raised	Gold	100 mA	0.1 in	Full	2.54 mm	PC Pin	Polyamide (PA) Nylon Glass Filled	10000 Steps			Hexadecimal	Panel Mount Right Angle	11 mm	0.433 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.74
		10	$ 6.15
		25	$ 5.59
		100	$ 4.83
		250	$ 4.39
		500	$ 4.07
		1000	$ 3.78
		2500	$ 3.63
Newark	Each	25	$ 9.51
		50	$ 8.60
		100	$ 7.60
		250	$ 6.83

Description

General part information

FR01AR16 Series

Dip Switch Hexadecimal 16 Position Panel Mount, Right Angle Rotary with Shaft Actuator 100mA 5VDC
