476317FX

Obsolete

LAPP

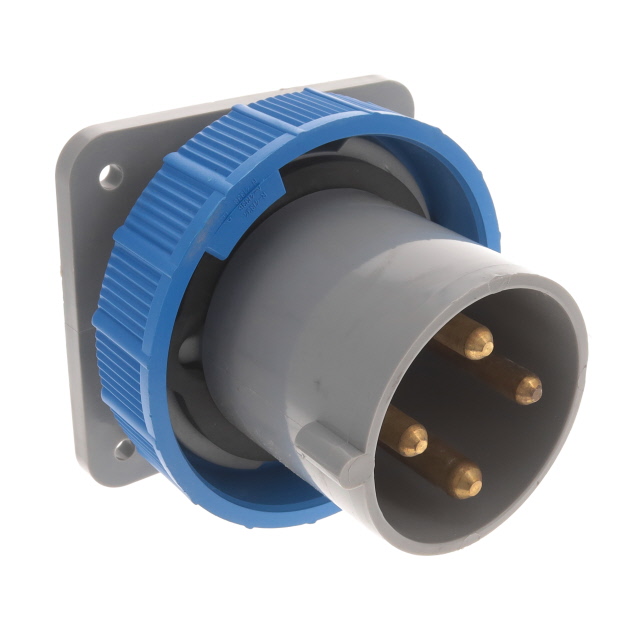

POWER ENTRY CONNECTOR, 60 A, 250 V, PANEL MOUNT, INLET, 3P+E, BLUE

Search across all available documentation for this part.

Obsolete

LAPP

POWER ENTRY CONNECTOR, 60 A, 250 V, PANEL MOUNT, INLET, 3P+E, BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	476317FX

Approval Agency	cULus
Connector Type	Receptacle, Male Pins
Current Rating (Amps)	60 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	4
Termination	Screw
Voltage Rating	3 Phase
Voltage Rating	250 VAC

Part	Termination	Voltage Rating	Voltage Rating	Connector Type	Material Flammability Rating	Mounting Type	Number of Positions	Current Rating (Amps)	Approval Agency	Ingress Protection
LAPP 476317FX	Screw	3 Phase	250 VAC	Male Pins Receptacle	UL94 V-0	Flange Panel Mount	4	60 A	cULus	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Receptacle, Male Pins Panel Mount, Flange

Technical documentation and resources
