74AUP2G06FZ4-7

Active

Diodes Inc

INVERTER, AUP/ULP/V SERIES, 2-FUNC, 1-INPUT, CMOS, PDSO6, 1.40 X 1 MM, GREEN, DFN-6

Search across all available documentation for this part.

Active

Diodes Inc

INVERTER, AUP/ULP/V SERIES, 2-FUNC, 1-INPUT, CMOS, PDSO6, 1.40 X 1 MM, GREEN, DFN-6

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP2G06FZ4-7

Current - Output High, Low	-
Current - Output High, Low	4 mA
Current - Quiescent (Max) [Max]	500 nA
Features	Open Drain
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.6 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	10.6 ns
Mounting Type	Surface Mount
Number of Circuits	2
Number of Inputs	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

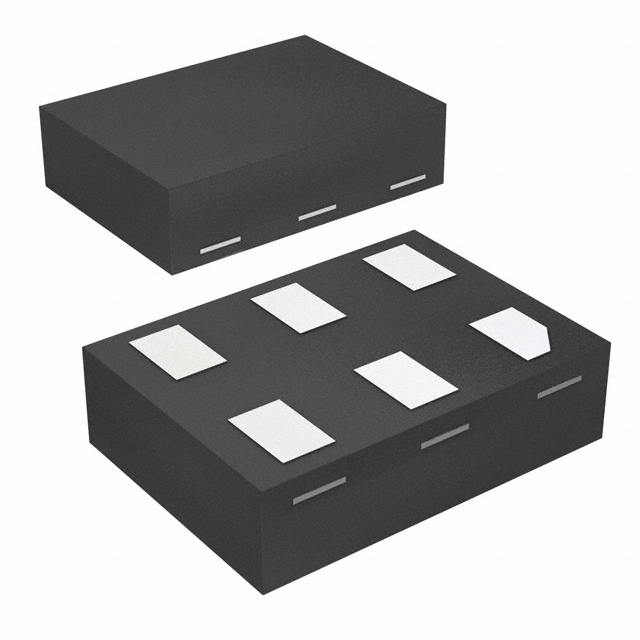

Package / Case	6-XFDFN
Supplier Device Package	X2-DFN1410-6
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Dual Inverters, Open Drains

Part	Number of Inputs	Current - Output High, Low	Current - Output High, Low	Number of Circuits	Package / Case	Mounting Type	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Logic Type	Current - Quiescent (Max) [Max]	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Max Propagation Delay @ V, Max CL
Diodes Inc 74AUP2G06FW4-7	2	-	4 mA	2	6-XFDFN	Surface Mount	Open Drain	0.8 V	3.6 V	X2-DFN1010-6	-40 °C	125 °C	Inverter	500 nA	2 V	1.6 V	10.6 ns
Diodes Inc 74AUP2G06FW3-7	2	-	4 mA	2	6-XFDFN	Surface Mount	Open Drain	0.8 V	3.6 V	X2-DFN0910-6	-40 °C	125 °C	Inverter	500 nA	2 V	1.6 V	10.6 ns
Diodes Inc 74AUP2G06FZ4-7	2	-	4 mA	2	6-XFDFN	Surface Mount	Open Drain	0.8 V	3.6 V	X2-DFN1410-6	-40 °C	125 °C	Inverter	500 nA	2 V	1.6 V	10.6 ns
Diodes Inc 74AUP2G06DW-7	2	-	4 mA	2	6-TSSOP SC-88 SOT-363	Surface Mount	Open Drain	0.8 V	3.6 V	SOT-363	-40 °C	125 °C	Inverter	500 nA	2 V	1.6 V	10.6 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

- PCs, networking, notebooks, netbooks, PDAs
