1-5435802-2

Active

TE Connectivity Raychem Cable Protection

SWITCH PIANO DIP SPST

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PIANO DIP SPST

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Number of Positions	Contact Finish	Voltage Rating	Actuator Type	Height Above Board	Height Above Board	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Body Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Electrical Life	Mounting Type	Termination Style	Features
TE Connectivity Raychem Cable Protection 1-5435802-0	7.11 mm	0.28 "	2	Gold	24 VDC	Piano	0.29 in	7.37 mm	Flush Recessed	0.1 in	Full	2.54 mm	25 mA	Polyester (PET) Glass Filled	Copper Alloy	105 ░C	-55 °C	SPST	7000 Cycles	Through Hole Right Angle	PC Pin
TE Connectivity Raychem Cable Protection 1-5435802-2			12			Piano			Raised									SPST		Through Hole
TE Connectivity Raychem Cable Protection 1-5435802-6	14.73 mm	0.58 in		Gold	24 VDC	Piano	0.29 in	7.37 mm	Raised	0.1 in	Full	2.54 mm	25 mA	Polyester (PET) Glass Filled	Copper Alloy	105 ░C	-55 °C	SPST	7000 Cycles	Through Hole Right Angle	PC Pin	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1728	$ 3.52

General part information

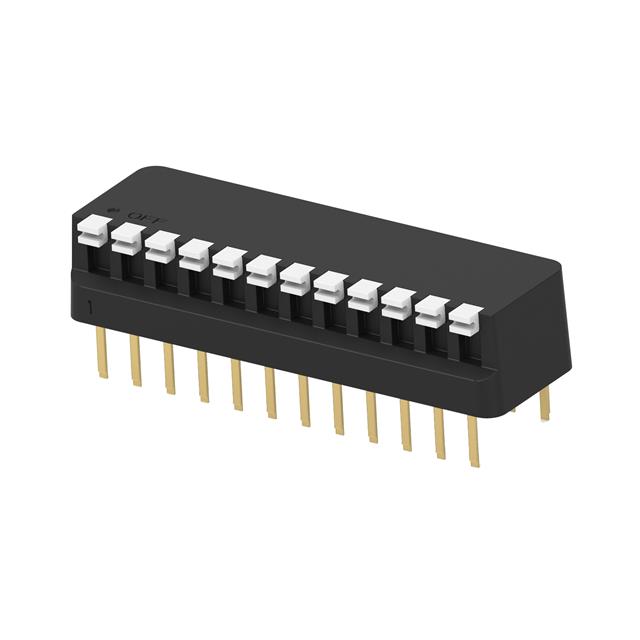

Dip Switch SPST 12 Position Through Hole Piano Actuator

Technical documentation and resources
