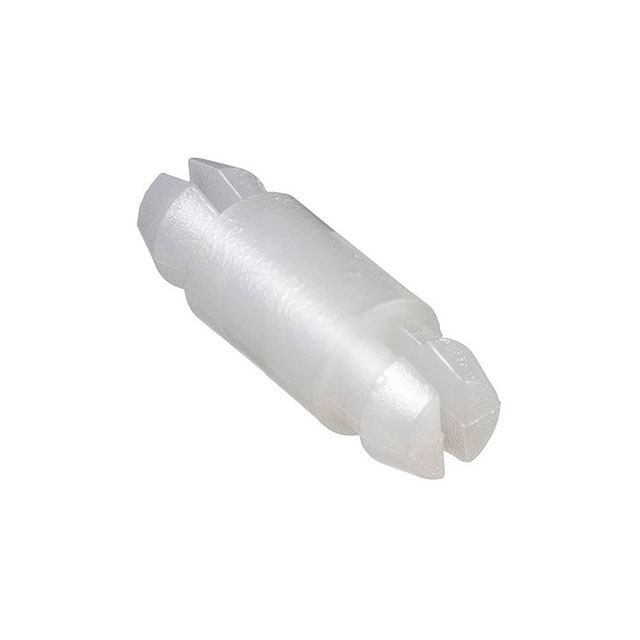

R6006-00

Active

Harwin Inc.

6.30MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

6.30MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6006-00

Between Board Height	0.248 in
Between Board Height	6.3 mm
Holding Type	Snap Fit
Length - Overall [x]	0.547 "
Length - Overall [x]	13.9 mm
Material	Nylon
Mounting Hole Diameter [diameter]	0.157 "
Mounting Hole Diameter [diameter]	4 mm
Mounting Panel Thickness	0.063 in
Mounting Panel Thickness	1.6 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Between Board Height	Between Board Height	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Mounting Type	Length - Overall [x]	Length - Overall [x]	Material	Mounting Panel Thickness	Mounting Panel Thickness	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type
Harwin Inc. R6006-00	0.248 in	6.3 mm	0.157 "	4 mm	1.6 mm	0.063 in	Snap Lock	0.547 "	13.9 mm	Nylon	0.063 in	1.6 mm	0.157 "	3.99 mm	Snap Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Fit / Snap Lock Nylon 0.248" (6.30mm)
