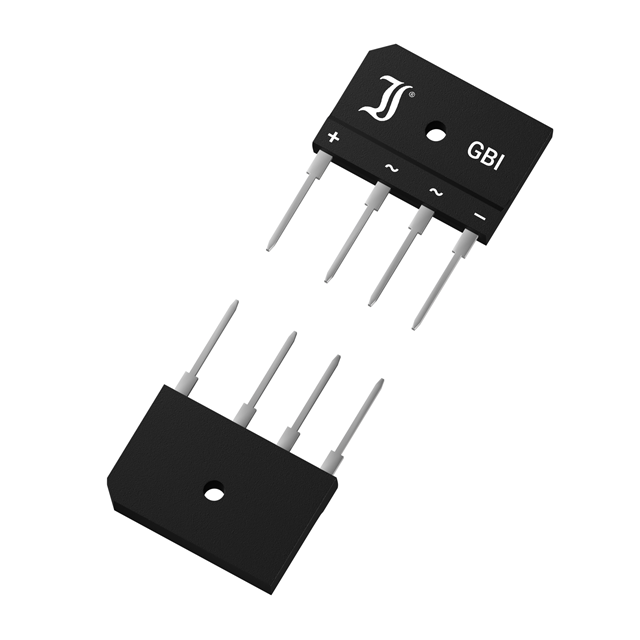

GBI25G

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 400V 4.2A GBI

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 400V 4.2A GBI

Technical Specifications

Parameters and characteristics for this part

Specification	GBI25G

Current - Average Rectified (Io)	4.2 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	GBI, 4-SIP
Supplier Device Package	GBI
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Voltage - Forward (Vf) (Max) @ If	Diode Type	Package / Case	Voltage - Peak Reverse (Max)	Technology	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]
Diotec Semiconductor GBI25W	1.1 V	Single Phase	4-SIP GBI	1.6 kV	Standard	5 µA	150 °C	-50 °C	Through Hole	GBI	5 A
Diotec Semiconductor GBI25J-T	1.1 V	Single Phase	4-SIP GBI		Standard	5 µA	150 °C	-50 °C	Through Hole	GBI	4.2 A	600 V
Diotec Semiconductor GBI25A	1.1 V	Single Phase	4-SIP GBI		Standard	5 µA	150 °C	-50 °C	Through Hole	GBI	4.2 A	50 V
Diotec Semiconductor GBI25G	1.1 V	Single Phase	4-SIP GBI		Standard	5 µA	150 °C	-50 °C	Through Hole	GBI	4.2 A	400 V
Diotec Semiconductor GBI25B	1.1 V	Single Phase	4-SIP GBI		Standard	5 µA	150 °C	-50 °C	Through Hole	GBI	4.2 A	100 V
Diotec Semiconductor GBI25J-LV	920 mV	Single Phase	4-SIP GBI		Standard	5 µA	150 °C	-50 °C	Through Hole	GBI	4.2 A	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole GBI
