1019-7511-000

Active

Radiall USA, Inc.

SMC M STR BHD SP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M STR BHD SP

Technical Specifications

Parameters and characteristics for this part

Specification	1019-7511-000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Number of Ports	Housing Color	Center Contact Material	Insertion Loss	Mating Cycles	Center Contact Plating	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Connector Type	Body Finish	Frequency - Max [Max]	Includes	Shield Termination	Body Material	Impedance	Contact Termination	Dielectric Material
Radiall USA, Inc. 1019-7511-000	1	Silver	Brass	0.25 dB	500	Gold	SMC	-65 ░C	165 °C	Bulkhead - Rear Side Nut	Jack Male Pin	Nickel	10 GHz	1 Connector 1 Lockwasher 1 Nut	Solder	Brass	50 Ohms	Solder Cup	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

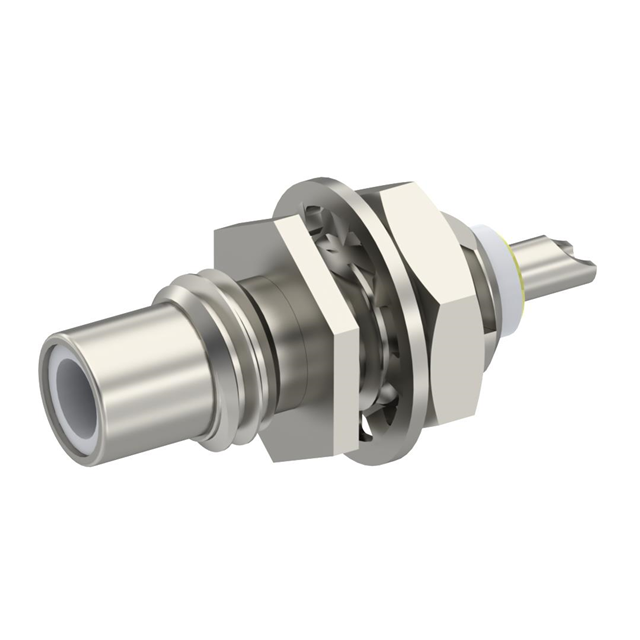

SMC Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
