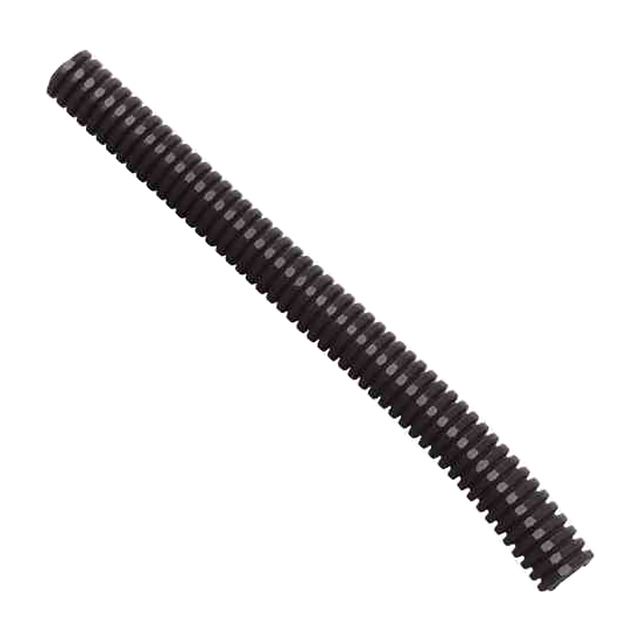

CF1140B

Active

Essentra Access Solutions

CONDUIT, NYLON (POLYAMIDE), BLACK, GREY, 1.304 ", CF SERIES

Search across all available documentation for this part.

Active

Essentra Access Solutions

CONDUIT, NYLON (POLYAMIDE), BLACK, GREY, 1.304 ", CF SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	CF1140B

Color	Black
Diameter - Inside [diameter]	25.91 mm
Diameter - Inside [diameter]	1.02 in
Diameter - Outside [diameter]	1.304 in
Diameter - Outside [diameter]	33.12 mm
Length [x]	76.2 m
Length [x]	250 ft
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 HB
Operating Temperature [Max]	149 °C
Operating Temperature [Min]	-40 °C
Type	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated
Wall Thickness	0.06 in
Wall Thickness	1.52 mm

Part	Length [x]	Length [x]	Wall Thickness	Wall Thickness	Type Attributes	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Material Flammability Rating	Material	Liquid Protection	Environment Protection	Features	Heat Protection
Essentra Access Solutions CF1140B	76.2 m	250 ft	0.06 in	1.52 mm	Convoluted Corrugated	25.91 mm	1.02 in	Black	149 °C	-40 °C	1.304 in	33.12 mm	Protective Hose Wire Loom	UL94 HB	Polyamide (PA) Nylon
Essentra Access Solutions CF1140A	76.2 m	250 ft	0.006 in	0.15 mm	Convoluted Corrugated	25.91 mm	1.02 in		149 °C	-40 °C	1.304 in	33.12 mm	Protective Hose Wire Loom	UL94 HB	Polyamide (PA) Nylon	Oil Resistant	UV Resistant	Self Extinguishing Solvent Resistant	Flame Retardant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Polyamide (PA), Nylon Convoluted, Corrugated Wire Loom, Protective Hose 1.020" (25.91mm) 250' (76.20m)
