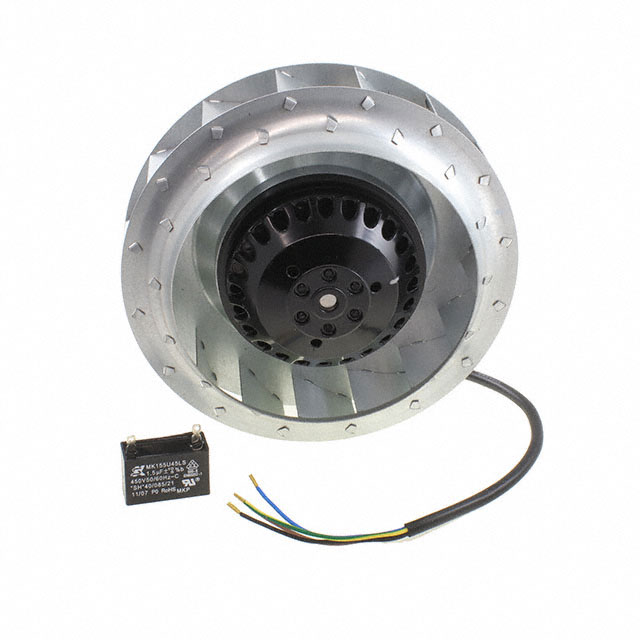

UF175AMA23-H1C2A

Active

Mechatronics Bearing Group

FAN IMP MTRZD 175X55MM 230VAC

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN IMP MTRZD 175X55MM 230VAC

Technical Specifications

Parameters and characteristics for this part

Specification	UF175AMA23-H1C2A

Air Flow	230 CFM
Air Flow	6.44 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.28 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Steel
Material - Frame	Aluminum
Noise	70 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	66 W
RPM	2900 RPM
Size / Dimension [diameter]	175 mm Dia
Static Pressure	323.6 Pa
Static Pressure	1.3 in H2O
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	2.8 lbs
Weight	1.3 kg
Width [y]	55 mm

Part	Size / Dimension [diameter]	Air Flow	Air Flow	Current Rating (Amps)	Features	Weight	Weight	Power (Watts)	Termination	Material - Blade	Fan Type	Static Pressure	Static Pressure	Voltage - Rated	Approval Agency	Noise	RPM	Material - Frame	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]
Mechatronics Bearing Group UF175AMA12-H1C2A	175 mm Dia	7.42 m³/min	265 CFM	0.55 A	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	2.8 lbs	1.3 kg	66 W	4 Wire Leads	Steel	Motorized Impellers	323.6 Pa	1.3 in H2O	115 VAC	CE cUL TUV UL	70 dB(A)	2900 RPM	Aluminum	Ball	70 °C	70 °C	-40 °C	-40 °C	55 mm
Mechatronics Bearing Group UF175AMA23-H1C2A	175 mm Dia	6.44 m³/min	230 CFM	0.28 A	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	2.8 lbs	1.3 kg	66 W	4 Wire Leads	Steel	Motorized Impellers	323.6 Pa	1.3 in H2O	230 VAC	CE cUL TUV UL	70 dB(A)	2900 RPM	Aluminum	Ball	70 °C	70 °C	-40 °C	-40 °C	55 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 82.66

General part information

Fan Motorized Impellers 230VAC Round - 175mm Dia Ball 230.0 CFM (6.44m³/min) 4 Wire Leads
