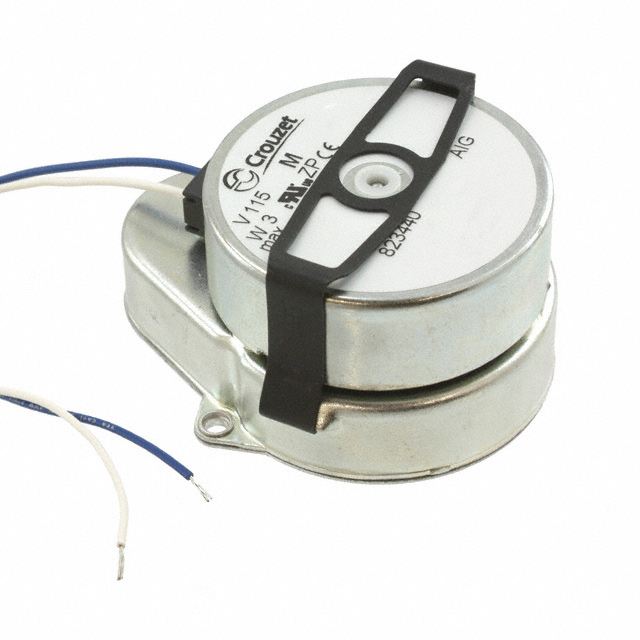

82344934
ActiveCrouzet
GEARMOTOR 12 RPM 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
82344934
ActiveCrouzet
GEARMOTOR 12 RPM 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 82344934 |
|---|---|
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Gear Reduction Ratio | 60 |
| Length - Shaft and Bearing | 0.52 in |
| Length - Shaft and Bearing | 13.2 mm |
| Mounting Hole Spacing | 47.6 mm |
| Mounting Hole Spacing | 1.874 in |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -5 °C |
| Power - Rated | 3 W |
| RPM | 12 RPM |
| Size / Dimension [diameter] | 1.858 in |
| Size / Dimension [diameter] | 47.2 mm |
| Termination Style | Wire Leads |
| Type | AC Motor |
| Voltage - Rated | 115 VAC |
| Weight | 210.01 g |
| Weight | 0.463 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 113.53 | |
Description
General part information
823440 Series
Synchronous AC Motor Gearmotor 12 RPM 3W 115VAC
