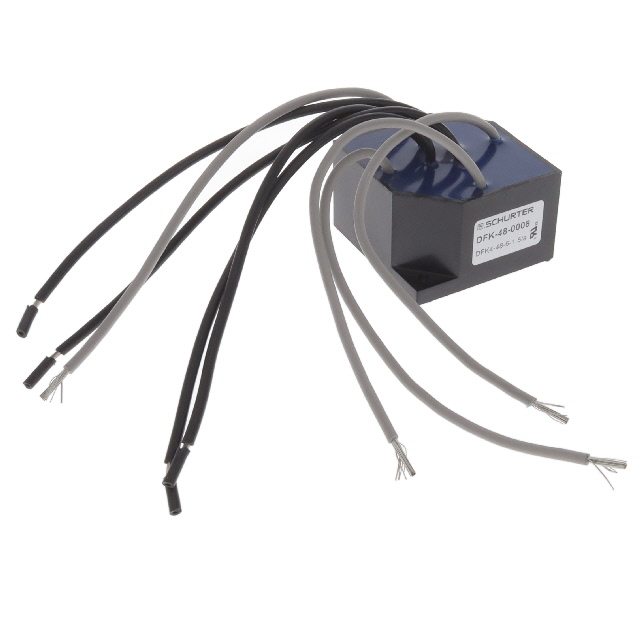

DFK-48-0008

Active

SCHURTER Inc.

CMC 6A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 6A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DFK-48-0008

Current Rating (Max) [Max]	6 A
DC Resistance (DCR) (Max)	20 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	48 mm
Size / Dimension [x]	1.89 in
Size / Dimension [y]	1.89 in
Size / Dimension [y]	48 mm

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	DC Resistance (DCR) (Max)	Mounting Type	Current Rating (Max) [Max]	Number of Lines	Operating Temperature [custom]
SCHURTER Inc. DFK-48-0008	1.89 in	48 mm	48 mm	1.89 in	Nonstandard	20 mOhm	Through Hole	6 A	2	-25 °C 100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 35.84

General part information

2 Line Common Mode Choke Through Hole 6A DCR 20mOhm
